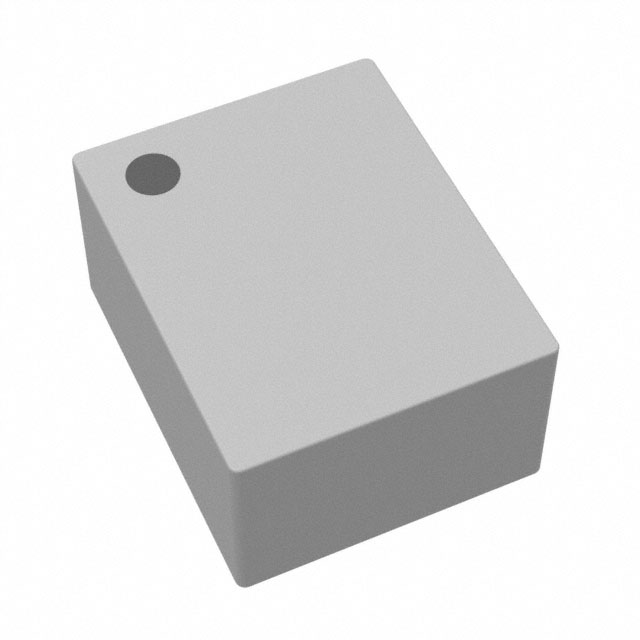

HTEH20161 Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
FIXED INDUCTOR 1UH
| Part | Material - Core | Current Rating (Amps) | DC Resistance (DCR) [Max] | Tolerance | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Supplier Device Package | Inductance Frequency - Test | Shielding | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current - Saturation (Isat) | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | Metal | 4.3 A | 36 mOhm | 20 % | Drum Core Wirewound | 0.039 in | 1 mm | 1 µH | 0806 (2016 Metric) | 1 MHz | Unshielded | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 4.8 A | 0806 (2016 Metric) | -55 C | 125 °C | Surface Mount |
Delta Electronics/Cyntec | Metal | 4.8 A | 20 % | Drum Core Wirewound | 0.039 in | 1 mm | 0.47 µH | 0806 (2016 Metric) | 1 MHz | Unshielded | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 6 A | 0806 (2016 Metric) | -55 C | 125 °C | Surface Mount |
