MXK Series

Manufacturer: Rubycon

Catalog

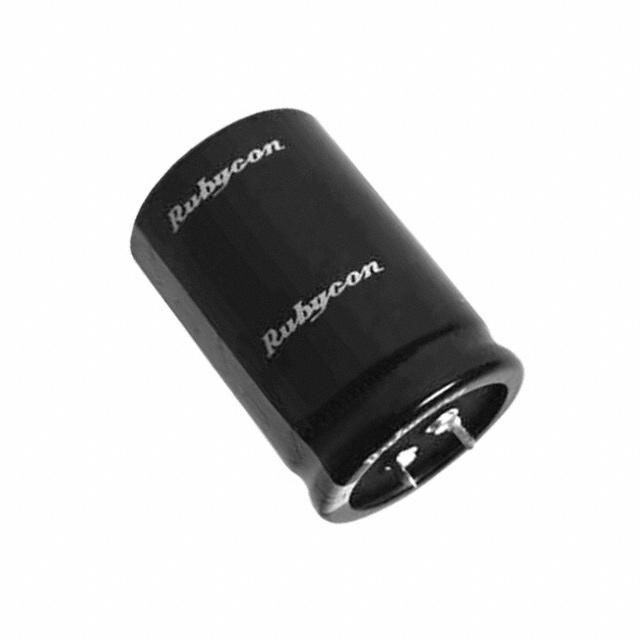

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN HIGH CAPACITANCE DENSITY ELECTROLYTIC CAPACITOR

Part	Ripple Current @ High Frequency	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Capacitance	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Applications	Voltage - Rated	Package / Case	Size / Dimension	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Rubycon 400MXK330MEFCSN25X35	2.31 A	20 %	105 ░C	-25 °C	1.65 A	0.394 in	10 mm	Through Hole	37 mm	1.457 in	330 µF	3000 Hrs	0.984 "	25 mm	Polar	General Purpose	400 V	Radial Can - Snap-In
Rubycon 400MXK330MEFCSN30X30	2.184 A	20 %	105 ░C	-25 °C	1.56 A	0.394 in	10 mm	Through Hole		1.26 in	330 µF	3000 Hrs	1.181 "		Polar	General Purpose	400 V	Radial Can - Snap-In	30 mm	32 mm
Rubycon 400MXK820MEFCSN35X45	3.472 A	20 %	105 ░C	-25 °C	2.48 A	0.394 in	10 mm	Through Hole			820 µF	3000 Hrs	1.378 "	35 mm	Polar	General Purpose	400 V	Radial Can - Snap-In			1.85 in	47 mm
Rubycon 450MXK330MEFCSN22X55	2.632 A	20 %	105 ░C	-25 °C	1.88 A	0.394 in	10 mm	Through Hole			330 µF	3000 Hrs	0.866 "	22 mm	Polar	General Purpose	450 V	Radial Can - Snap-In			2.244 "	57 mm
Rubycon 475MXK220MEFCSN30X30	1.918 A	20 %	105 ░C	-25 °C	1.37 A	0.394 in	10 mm	Through Hole		1.26 in	220 µF	3000 Hrs	1.181 "		Polar	General Purpose	475 V	Radial Can - Snap-In	30 mm	32 mm
Rubycon 400MXK220MEFCSN25X30	1.848 A	20 %	105 ░C	-25 °C	1.32 A	0.394 in	10 mm	Through Hole		1.26 in	220 µF	3000 Hrs	0.984 "	25 mm	Polar	General Purpose	400 V	Radial Can - Snap-In		32 mm
Rubycon 400MXK180MEFCSN22X30	1.666 A	20 %	105 ░C	-25 °C	1.19 A	0.394 in	10 mm	Through Hole		1.26 in	180 µF	3000 Hrs	0.866 "	22 mm	Polar	General Purpose	400 V	Radial Can - Snap-In		32 mm
Rubycon 450MXK390MEFCSN25X50	2.856 A	20 %	105 ░C	-25 °C	2.04 A	0.394 in	10 mm	Through Hole			390 µF	3000 Hrs	0.984 "	25 mm	Polar	General Purpose	450 V	Radial Can - Snap-In			2.047 in	52 mm
Rubycon 400MXK390MEFCSN25X40	2.59 A	20 %	105 ░C	-25 °C	1.85 A	0.394 in	10 mm	Through Hole		1.654 in	390 µF	3000 Hrs	0.984 "	25 mm	Polar	General Purpose	400 V	Radial Can - Snap-In		42 mm
Rubycon 450MXK220MEFCSN22X40	2.03 A	20 %	105 ░C	-25 °C	1.45 A	0.394 in	10 mm	Through Hole		1.654 in	220 µF	3000 Hrs	0.866 "	22 mm	Polar	General Purpose	450 V	Radial Can - Snap-In		42 mm
