C167SRLM Series
Manufacturer: INFINEON
Beta
⌘K

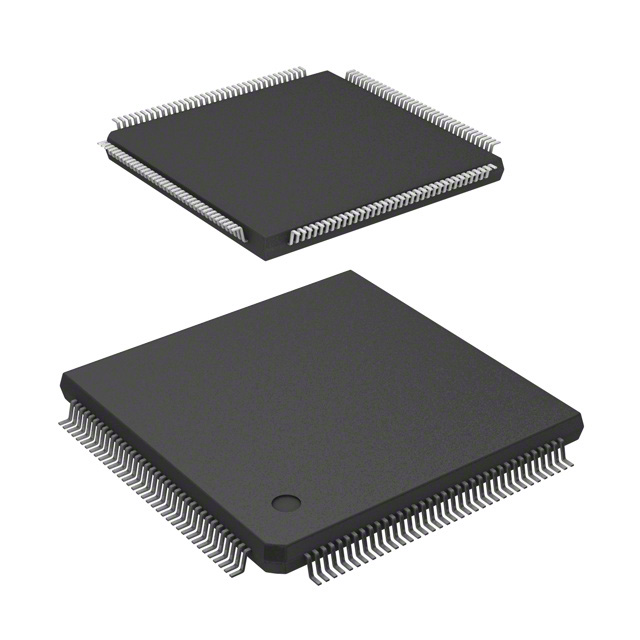

IC MCU 16BIT ROMLESS 144MQFP
| Part | Program Memory Type | RAM Size | Number of I/O | Data Converters [custom] | Data Converters | Data Converters [custom] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Core Processor | Speed | Oscillator Type | Mounting Type | Supplier Device Package | Peripherals | Operating Temperature [Max] | Operating Temperature [Min] | Core Size | Connectivity | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | ROMless | 4K x 8 | 111 | 10 b | A/D | 16 | 4.5 V | 5.5 V | C166 | 25 MHz | External | Surface Mount | P-MQFP-144-8 | POR PWM WDT | 125 °C | -40 °C | 16-Bit | CANbus EBI/EMI SPI UART/USART | 144-BQFP |
INFINEON | ROMless | 4K x 8 | 111 | 10 b | A/D | 16 | 4.5 V | 5.5 V | C166 | 25 MHz | External | Surface Mount | P-MQFP-144-8 | POR PWM WDT | 70 °C | 0 °C | 16-Bit | CANbus EBI/EMI SPI UART/USART | 144-BQFP |
INFINEON | ROMless | 4K x 8 | 111 | 10 b | A/D | 16 | 4.5 V | 5.5 V | C166 | 25 MHz | External | Surface Mount | P-MQFP-144-8 | POR PWM WDT | 70 °C | 0 °C | 16-Bit | CANbus EBI/EMI SPI UART/USART | 144-BQFP |
