1617146 Series

Catalog

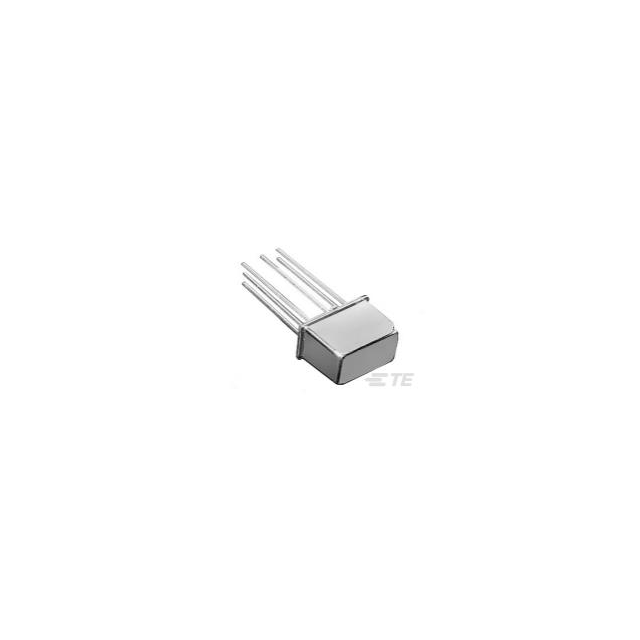

RELAY GEN PURPOSE DPDT 1A 12V

Part	Coil Resistance	Contact Form	Release Time	Features	Seal Rating	Termination Style	Coil Voltage	Must Release Voltage	Relay Type	Coil Current	Switching Voltage [Max]	Mounting Type	Operate Time	Contact Material	Contact Rating (Current)	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Switching Voltage
TE Connectivity AMP Connectors 1617146-1	390 Ohms	DPDT (2 Form C)	4 ms	Diode	Sealed - Hermetically	PC Pin	12 VDC	0.63 VDC	General Purpose	30.8 mA	28 VDC 115 VAC	Through Hole	2 ms	Gold (Au) Silver Palladium (AgPd)	1 A	Non Latching	-65 ░C	125 °C	7 VDC
TE Connectivity AMP Connectors 3-1617146-4	390 Ohms	DPDT (2 Form C)	4 ms	Diode	Sealed - Hermetically	PC Pin	12 VDC	0.63 VDC	General Purpose	30.8 mA		Through Hole	2 ms	Gold (Au) Silver Palladium (AgPd)	1 A	Non Latching	-65 ░C	125 °C	7 VDC	28 VDC
TE Connectivity AMP Connectors 1617146-6	390 Ohms	DPDT (2 Form C)	4 ms	Diode	Sealed - Hermetically	PC Pin	12 VDC	0.63 VDC	General Purpose	30.8 mA		Through Hole	2 ms	Gold (Au) Silver Palladium (AgPd)	1 A	Non Latching	-65 ░C	125 °C	7 VDC	28 VDC
