PE42359 Series
Manufacturer: pSemi
Beta
⌘K
IC RF SWITCH SPDT 3GHZ SC70-6
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Topology | RF Type | Circuit | Insertion Loss | Voltage - Supply [Max] | Voltage - Supply [Min] | Test Frequency | Frequency Range [Max] | Frequency Range [Min] | Mounting Type | Isolation | IIP3 | Impedance | P1dB | Features | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

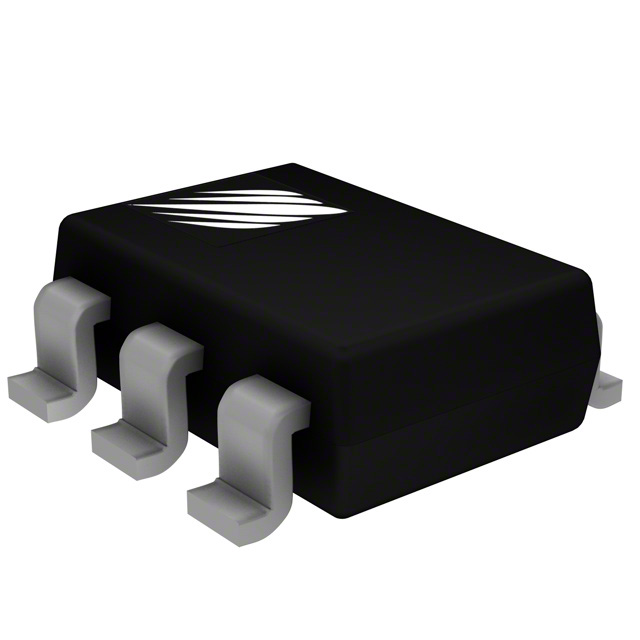

 pSemi | 6-TSSOP SC-88 SOT-363 | -40 C | 105 ░C | Reflective | General Purpose | SPDT | 0.5 dB | 3.3 V | 1.8 V | 2 GHz 3 GHz | 3 GHz | 10 MHz | Surface Mount | 13 dB | 55 dBm | 50 Ohms | 30.5 dBm | Single/Dual Line Control | SC-70-6 |
