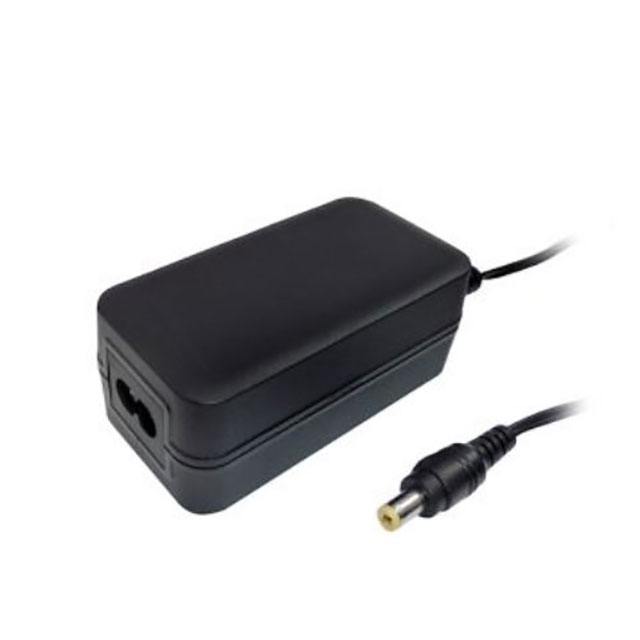

15DYS865 Series
Manufacturer: Ideal Power Ltd.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
ADAPTER, AC-DC, 1 O/P, 15V, 4A ROHS COMPLIANT: YES
| Part | Power (Watts) | Output Connector O.D. | Output Connector | Output Connector Length | Output Connector I.D. | Form | Applications | Input Type | Voltage - Output | Region Utilized | Operating Temperature (Max) | Operating Temperature (Min) | Approval Agency | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Efficiency | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Standard Number | No Load Power Consumption (Max) | Input Connector | Polarization | Current - Output (Max) | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ideal Power Ltd. | 60 W | 5.5 mm | Barrel Plug | 12 mm | 2.1 mm | Desktop (Class II) | ITE (Commercial) | Cord (Sold Separately) | 15 V | International | 40 °C | 0 °C | CB CCC CE FCC GS PSE RCM TUV | 90 V | 264 V | 88 % | 4.72 in | 2.09 in | 1.26 in | 60950-1 | 210 mW | IEC 320-C8 | Positive Center | 4 A | 47.2 in |
 Ideal Power Ltd. | 63 W | 5.5 mm | Barrel Plug | 12 mm | 2.1 mm | Desktop (Class II) | ITE (Commercial) | Cord (Sold Separately) | 18 V | International | 40 °C | 0 °C | CB CCC CE FCC GS PSE RCM TUV | 90 V | 264 V | 88 % | 4.72 in | 2.09 in | 1.26 in | 60950-1 | 210 mW | IEC 320-C8 | Positive Center | 3.5 A | 59 in |
Ideal Power Ltd. | 65 W | 5.5 mm | Barrel Plug | 12 mm | 2.1 mm | Desktop (Class II) | ITE (Commercial) | Cord (Sold Separately) | 30 V | International | 40 °C | 0 °C | CB CCC CE FCC GS PSE RCM TUV | 90 V | 264 V | 88 % | 4.72 in | 2.09 in | 1.26 in | 60950-1 | 210 mW | IEC 320-C8 | Positive Center | 2.16 A | 59 in |
