2373 Series
Manufacturer: COTO TECHNOLOGY
Beta
⌘K

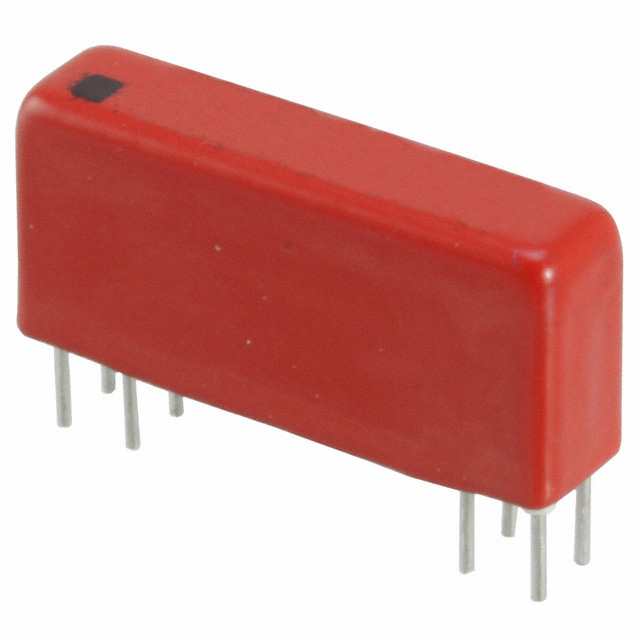

RELAY REED 3PST 500MA 5V
| Part | Coil Resistance | Coil Type | Switching Voltage [Max] | Must Release Voltage | Seal Rating | Coil Voltage | Contact Rating (Current) | Contact Form | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Must Operate Voltage | Operate Time | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 COTO TECHNOLOGY | 90 Ohms | Non Latching | 200 VDC 200 VAC | 0.4 VDC | Sealed - Hermetically | 5 VDC | 0.5 A | 3PST-NO (3 Form A) | 0.15 ms | 125 °C | -40 C | Through Hole | PC Pin | 2.5 VDC | 500 µs | |
COTO TECHNOLOGY | 500 Ohms | Non Latching | 200 VDC 200 VAC | 1 VDC | Sealed - Hermetically | 12 VDC | 0.5 A | 3PST-NO (3 Form A) | 0.15 ms | 125 °C | -40 C | Through Hole | PC Pin | 6.7 VDC | 500 µs | 24 mA |
