745-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

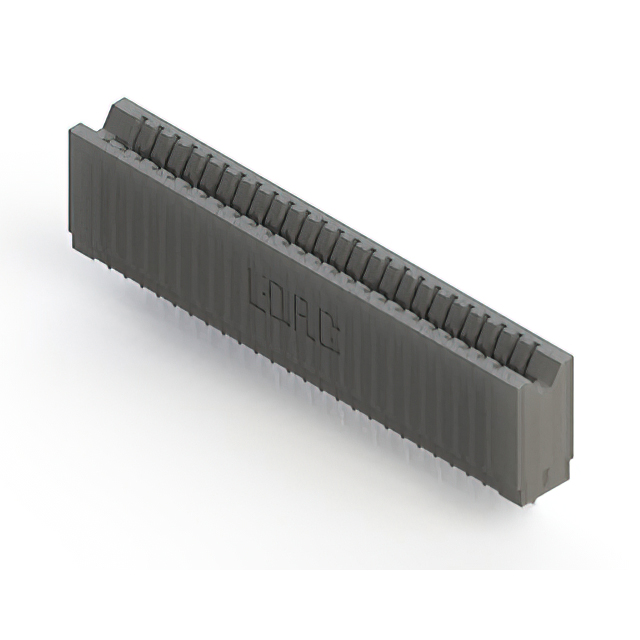

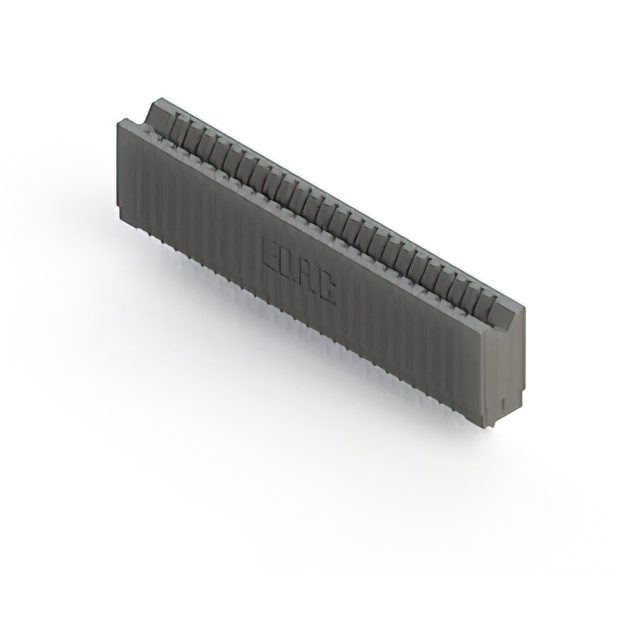

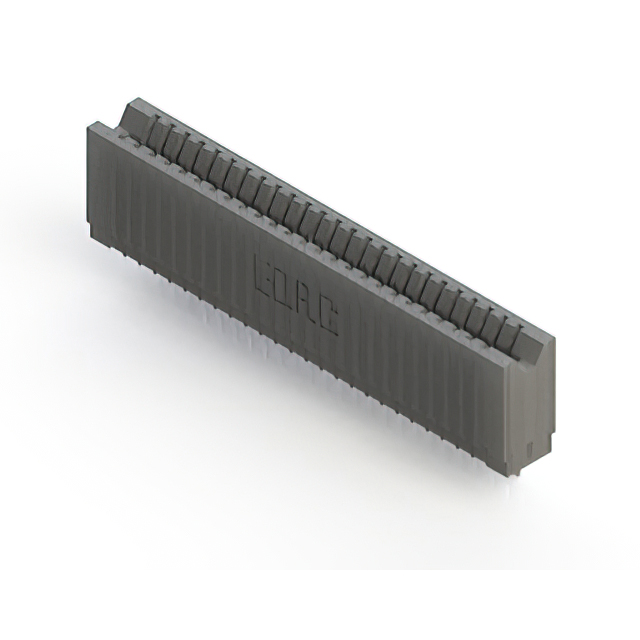

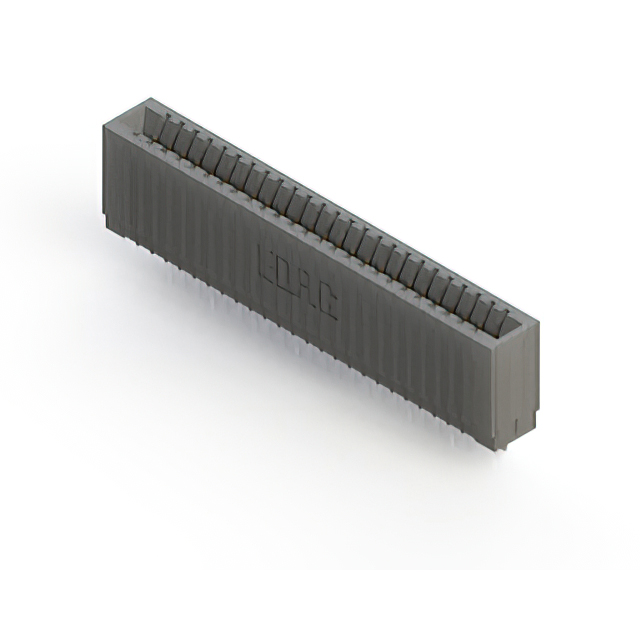

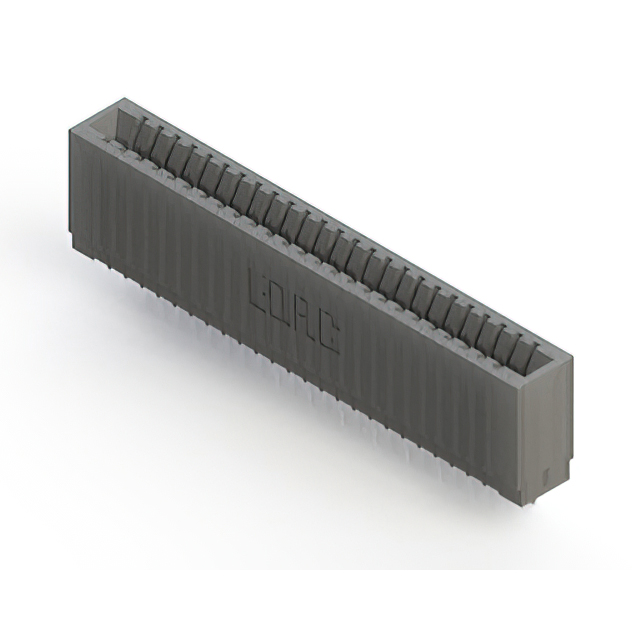

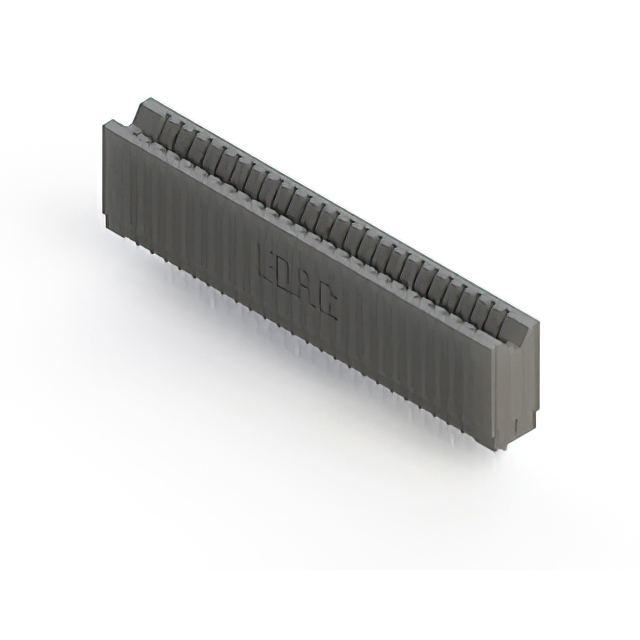

CONN EDGE SINGLE FML 25POS 0.100
| Part | Read Out | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Contact Finish | Number of Rows | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Termination | Number of Positions/Bay/Row [custom] | Mounting Type | Contact Material | Gender | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
 EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
 EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
 EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit Wire Wrap | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
 EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit Wire Wrap | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
 EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
 EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
 EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit Wire Wrap | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
 EDAC Inc. | Single | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Gold | 1 | Black | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Press-Fit Wire Wrap | 25 | Through Hole | Copper Alloy | Female | Polyester Thermoplastic |
