PPPN082 Series

Catalog

CONN HDR 16POS 0.079 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Mounting Type	Number of Rows [custom]	Contact Finish - Mating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Termination	Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Connector Type	Insulation Color	Fastening Type	Current Rating (Amps)	Features	Insulation Height

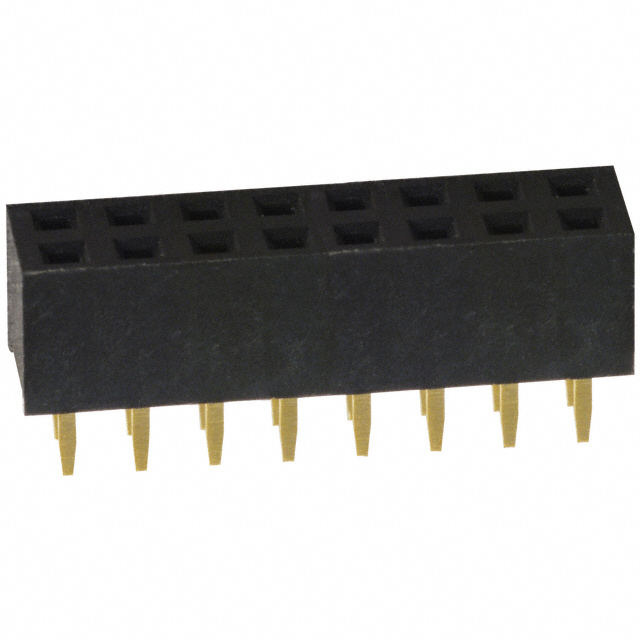

Sullins Connector Solutions PPPN082AFCN	Square	Polyester	Phosphor Bronze	Flash	Through Hole	2	Gold	Gold	2 mm	0.079 in	16	0.079 "	2 mm	2.4 mm	0.094 in	Solder	Female Socket	UL94 V-0	-40 C	105 ░C	4.3 mm	0.169 "	All	Flash	Header	Black	Push-Pull
Sullins Connector Solutions PPPN082GFNP	Square	Polyester	Phosphor Bronze	Flash	Surface Mount	2	Gold	Gold	2 mm	0.079 in	16	0.079 "	2 mm			Solder	Female Socket	UL94 V-0	-40 C	105 ░C			All	Flash	Header Top or Bottom Entry	Black	Push-Pull	2 A	Board Guide
Sullins Connector Solutions PPPN082GFNS	Square	Polyester	Phosphor Bronze	Flash	Surface Mount	2	Gold	Gold	2 mm	0.079 in	16	0.079 "	2 mm			Solder	Female Socket	UL94 V-0	-40 C	105 ░C			All	Flash	Header Top or Bottom Entry	Black	Push-Pull	2 A
Sullins Connector Solutions PPPN082FFKP	Square	Polyester	Phosphor Bronze	Flash	Surface Mount	2	Gold	Gold	2 mm	0.079 in	16	0.079 "	2 mm			Solder	Female Socket	UL94 V-0	-40 C	105 ░C	0.173 in		All	Flash	Header	Black	Push-Pull	2 A	Board Guide	4.4 mm
