LCBS-10 Series
Manufacturer: Essentra Components
Beta
⌘K

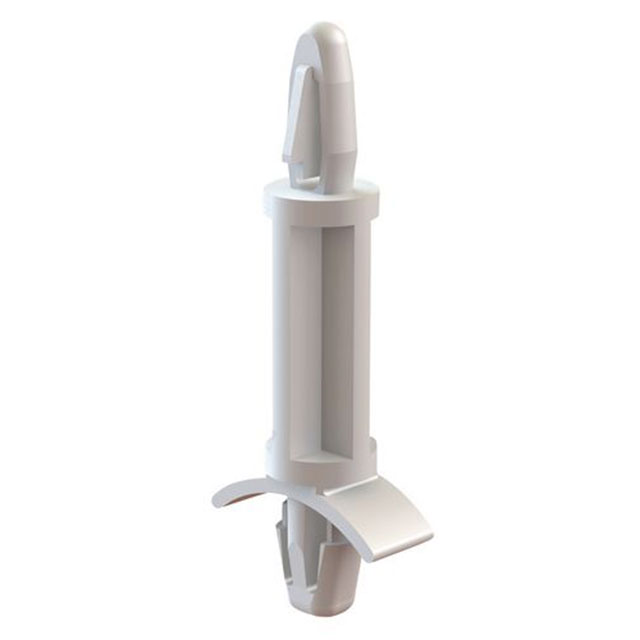

BRD SPT SNAP LOCK NYLON 10MM
| Part | Between Board Height [z] | Between Board Height [z] | Mounting Type | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Features | Holding Type | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Max] | Between Board Height | Between Board Height | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 0.394 in | 10 mm | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | Nylon | 0.1875 in | 0.187 in | 4.75 mm | 28.6 mm | 1.126 in | Winged | Snap Lock | 3.99 mm | 0.157 " | 0.79 mm | 0.031 in | 0.078 " | 1.98 mm | |||
 Essentra Components | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | Nylon | 0.1875 in | 0.187 in | 4.75 mm | 34.4 mm | 1.354 " | High Temperature Winged | Snap Lock | 3.99 mm | 0.157 " | 1.4 mm | 0.055 in | 0.08 in | 2.03 mm | 15.88 mm | 0.625 in | 5 8 |
