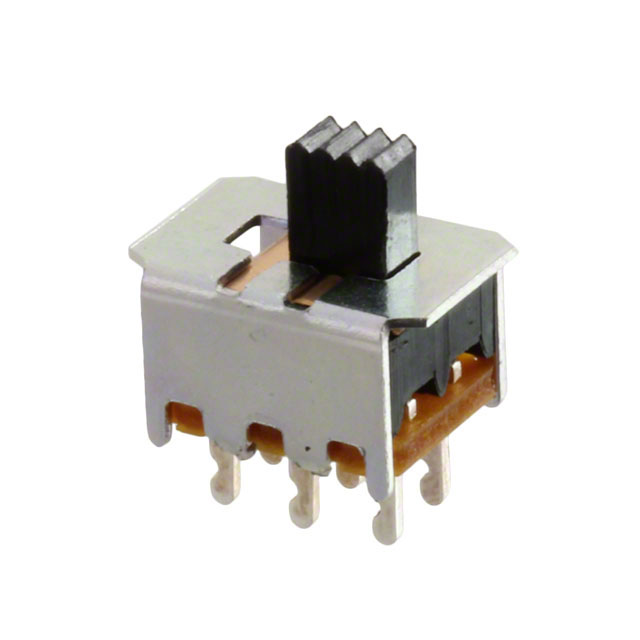

1825079 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE DPDT 500MA 125V
| Part | Switch Travel | Mechanical Life | Actuator Material | Electrical Life | Operating Force | Current Rating (Amps) | Mounting Type | Features | Contact Finish | Termination Style | Contact Material | Actuator Type | Circuit | Contact Timing | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.7 mm | 10000 Steps | Polybutylene Terephthalate (PBT) | 6000 Cycles | 350 gf | 500 mA | Through Hole | Epoxy Sealed Terminals | Silver | Solder Lug | Copper Alloy | Standard | DPDT | Non-Shorting (BBM) | 125 V | 85 °C | -20 ░C | On-On | 4.8 mm |
