1776044 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

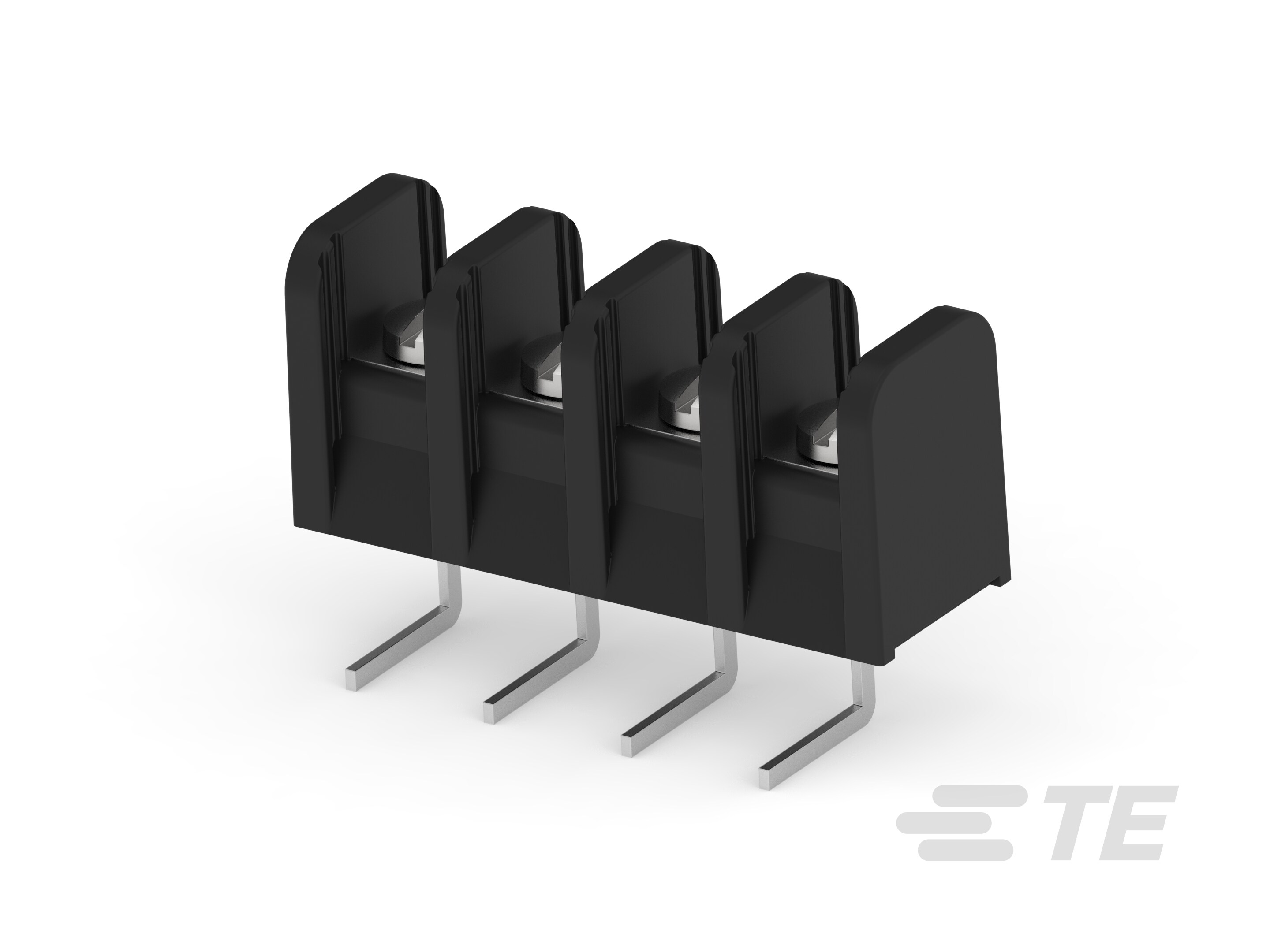

CONN BARRIER STRIP 4 POS 11.1MM WIRE WRAP RA THRU-HOLE 20A/CONTACT PACKAGE
| Part | Mounting Type | Material - Insulation | Terminal Screw Material | Terminal Screw Finish | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Top Termination | Wire Gauge [Max] | Wire Gauge [Min] | Number of Wire Entries | Color | Pitch [x] | Pitch [x] | Terminal Block Type | Number of Circuits | Barrier Type | Bottom Termination | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Right Angle Through Hole | Nylon Polyamide (PA) | Stainless Steel | Clear Chromate Zinc | UL94 V-0 | 105 ░C | -60 °C | 1 | Screws | 22 AWG | 12 AWG | 4 | Black | 0.438 in | 11.12 mm | Barrier Block | 4 | 2 Wall (Dual) | Wire Wrap | 600 V | 20 A |
