PQU650M Series
Manufacturer: Murata Electronics
Beta
⌘K

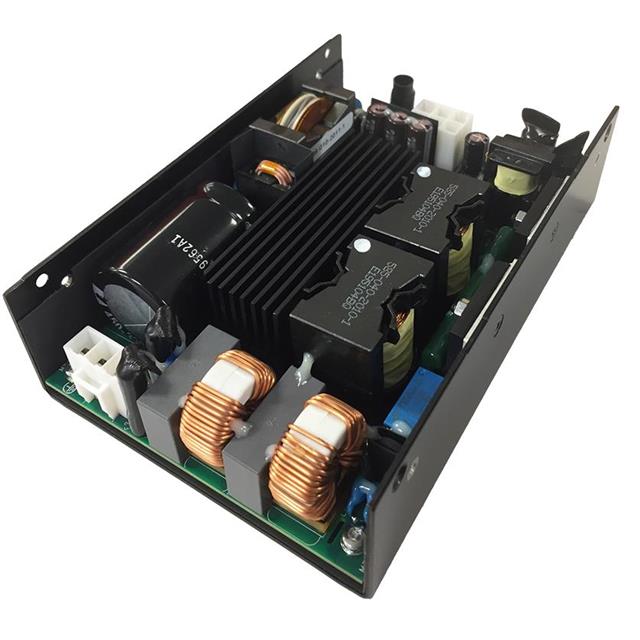

POWER SUPPLY, AC-DC, 48V, 13.6A ROHS COMPLIANT: YES
| Part | Minimum Load Required | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Approval Agency | Applications | Standard Number | Power (Watts) | Voltage - Output 1 | Type | Features | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 13.6 A | -30 °C | 70 °C | 4000 V | CB CE cTUVus TUV | Medical | 60601-1 | 653 W | 48 V | Open Frame | Adjustable Output Load Sharing PFC Remote Sense Standby Output Universal Input | Chassis Mount | 264 VAC | 90 VAC | 1 | 95 % | 6 " | 4 " | 1.58 in | 152.4 mm | 40 mm | 101.6 mm | |
 Murata Electronics | 27.1 A | -30 °C | 70 °C | 4000 V | CB CE cTUVus TUV UKCA | Medical | 60601-1 | 650 W | 24 V | Open Frame | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 264 VAC | 90 VAC | 1 | 94 % | 6 " | 4 " | 1.69 in | 152.4 mm | 42.9 mm | 101.6 mm |
