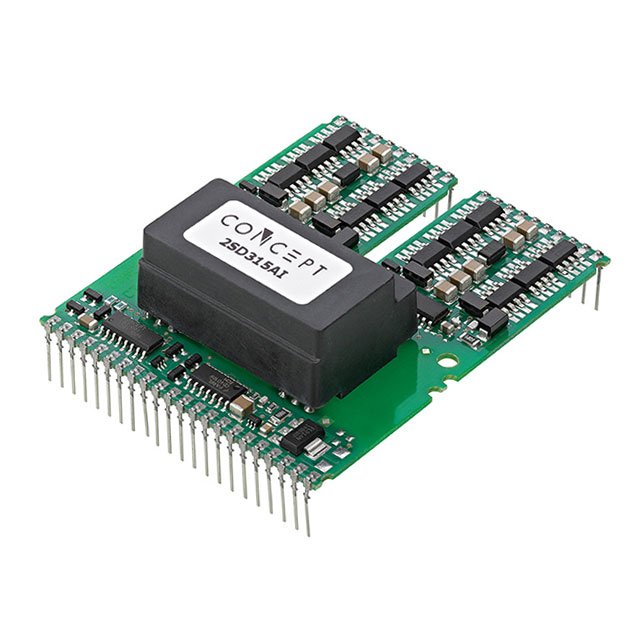

2SD315 Series
Manufacturer: POWER INTEGRATIONS
Beta
⌘K
IC GATE DRVR HALF-BRIDGE MODULE
| Part | Gate Type | Driven Configuration | Package / Case | Mounting Type | Rise / Fall Time (Typ) | Rise / Fall Time (Typ) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Drivers | Current - Peak Output (Source, Sink) [x] | Supplier Device Package | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET | Half-Bridge | 44-DIP Module 42 Leads | Through Hole | 160 ns | 130 ns | 85 °C | -40 C | 2 | 18 A | Module | |
POWER INTEGRATIONS | IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET | Half-Bridge | Module | Through Hole | 85 C | -40 ¯C | 2 | 18 A | Module | 15 VDC |
