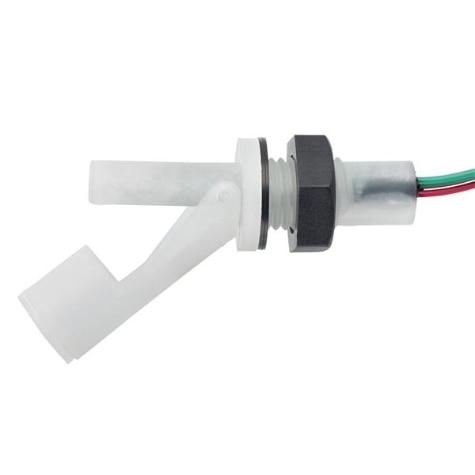

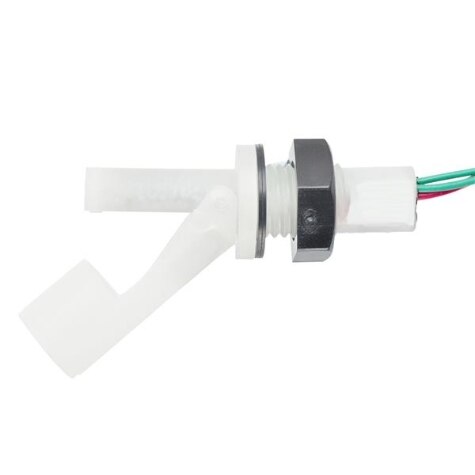

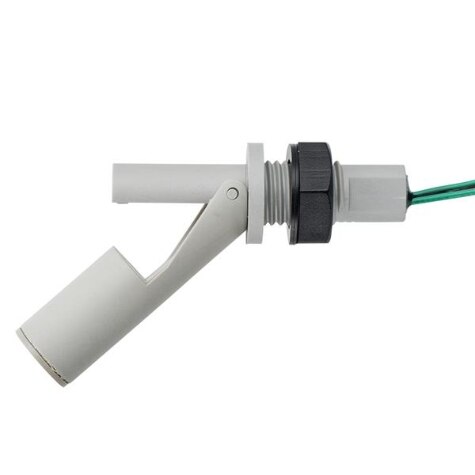

TSF40 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SENSOR LEVEL SWITCH SINGLE FLOAT
| Part | Type | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Voltage Rating | Minimum Liquid Specific Gravity [Min] | Current | Material - Housing & Prism | Switch Actuation Level | Switch Actuation Level | Output Type | Mounting Type | Switch Actuation Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | Liquid Temperature | 120 °C | -10 °C | SPST-NC/NO | 120 VDC 240 VAC | 0.85 | 600 mA | Polypropylene Sulphide (PPS) | 0.354 " 0.464 " | 9 mm 20 mm | Switch (Single Float) | M16x2 Thread Panel Mount | |
 Sensata-Crydom | Liquid Temperature | 120 °C | -10 °C | SPST-NC/NO | 120 VDC 240 VAC | 0.85 | 600 mA | Polypropylene Sulphide (PPS) | 0.354 " 0.464 " | 9 mm 20 mm | Switch (Single Float) | M16x2 Thread Panel Mount | |
 Sensata-Crydom | Liquid Temperature | 100 °C | -20 ░C | SPST-NC/NO | 120 VDC 240 VAC | 0.85 | 600 mA | Polypropylene (PP) | 8 mm 20 mm | Switch (Single Float) | M16x2 Thread Panel Mount | 0.3149 " 0.4641 " | |
 Sensata-Crydom | Liquid Temperature | 120 °C | -10 °C | SPST-NC/NO | 300 VDC 300 VAC | 0.85 | 1 A | Polypropylene Sulphide (PPS) | 0.354 " 0.464 " | 9 mm 20 mm | Switch (Single Float) | M16x2 Thread Panel Mount | |
 Sensata-Crydom | Liquid Temperature | 100 °C | -20 ░C | SPST-NC/NO | 300 VDC 300 VAC | 0.85 | 1 A | Polypropylene (PP) | 8 mm 20 mm | Switch (Single Float) | M16x2 Thread Panel Mount | 0.3149 " 0.4641 " | |
 Sensata-Crydom | Liquid Temperature | 120 °C | -10 °C | SPST-NC/NO | 300 VDC 300 VAC | 0.85 | 1 A | Polypropylene Sulphide (PPS) | 0.354 " 0.464 " | 9 mm 20 mm | Switch (Single Float) | M16x2 Thread Panel Mount | |
 Sensata-Crydom | Liquid Temperature | 100 °C | -20 ░C | SPST-NC/NO | 300 VDC 300 VAC | 0.85 | 1 A | Polypropylene (PP) | 8 mm 20 mm | Switch (Single Float) | M16x2 Thread Panel Mount | 0.3149 " 0.4641 " | |
 Sensata-Crydom | Liquid Temperature | 100 °C | -20 ░C | SPST-NC/NO | 120 VDC 240 VAC | 0.85 | 600 mA | Polypropylene (PP) | 8 mm 20 mm | Switch (Single Float) | M16x2 Thread Panel Mount | 0.3149 " 0.4641 " | |
 Sensata-Crydom | Liquid Temperature | SPST-NC/NO | 120 VDC 240 VAC | 0.85 | 600 mA | Nylon | 7 mm 20 mm | 0.276 in 0.464 in | Switch (Single Float) | M16x2 Thread Panel Mount | |||
 Sensata-Crydom | Liquid Temperature | SPST-NC/NO | 300 VDC 300 VAC | 0.85 | 1 A | Nylon | 7 mm 20 mm | 0.276 in 0.464 in | Switch (Single Float) | M16x2 Thread Panel Mount |
