VEMT2000 Series

Catalog

PHOTOTRANSISTOR 790 TO 970 NM

Part	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Dark (Id) (Max) [Max]	Package / Case	Qualification	Viewing Angle	Wavelength	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Orientation

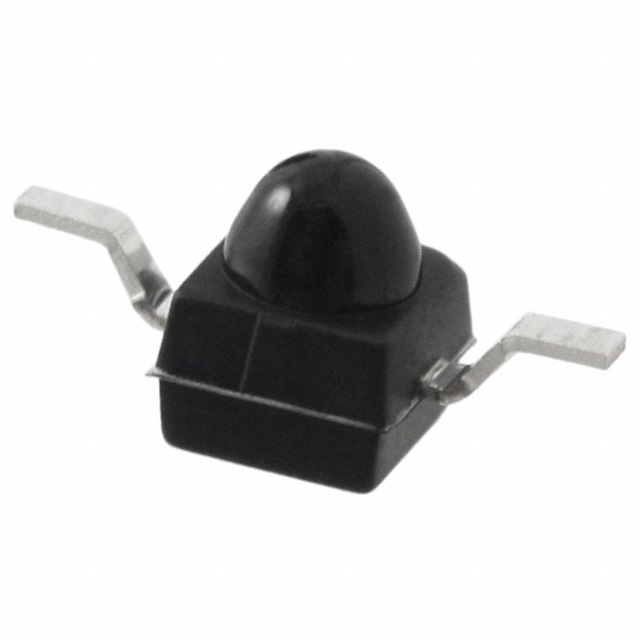

Vishay Semiconductor Opto Division VEMT2000X01	Automotive	-40 C	100 °C	Surface Mount	100 nA	2-SMD Z-Bend	AEC-Q101	30 °	860 nm	50 mA	20 V	100 mW	Top View
