CPI-2416 Series

Catalog

AUDIO BUZZER PIEZO 8VDC 16VDC 16MA 12VDC 85DB 2400HZ TO 3400HZ THROUGH HOLE PIN LAYER

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Input Type	Voltage Range [Max]	Voltage Range [Min]	Driver Circuitry	Size / Dimension [diameter]	Size / Dimension	Operating Mode	Sound Pressure Level (SPL)	Voltage - Rated	Current - Supply	Port Location	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Mounting Type

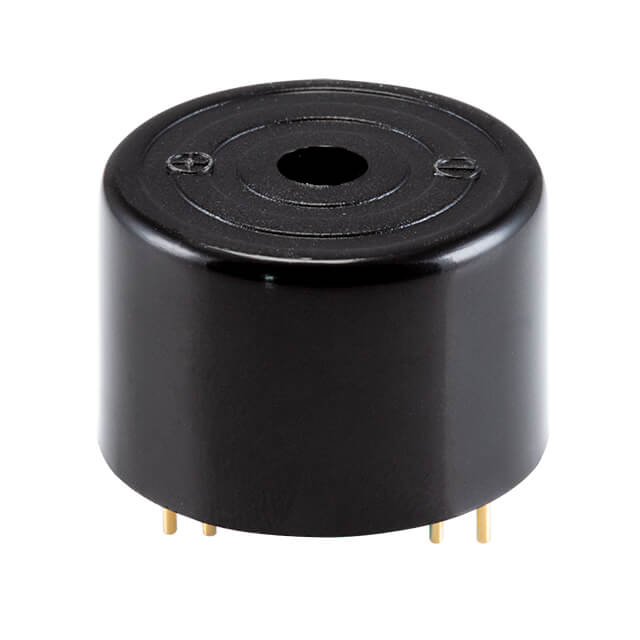

Same Sky (Formerly CUI Devices) CPI-2416-100T	0.65 in	16.5 mm	PC Pins	DC	18 VDC	4 VDC	Indicator Internally Driven	0.965 in	24.5 mm	Fast Pulse Single Tone Slow	100 dB	12 VDC	25 mA	Top	Piezo	85 °C	-30 ░C	3.4 kHz	Through Hole
Same Sky (Formerly CUI Devices) CPI-2416-100T	0.65 in	16.5 mm	PC Pins	DC	18 VDC	4 VDC	Indicator Internally Driven	0.965 in	24.5 mm	Fast Pulse Single Tone Slow	100 dB	12 VDC	25 mA	Top	Piezo	85 °C	-30 ░C	3.4 kHz	Through Hole
