9401-1583 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

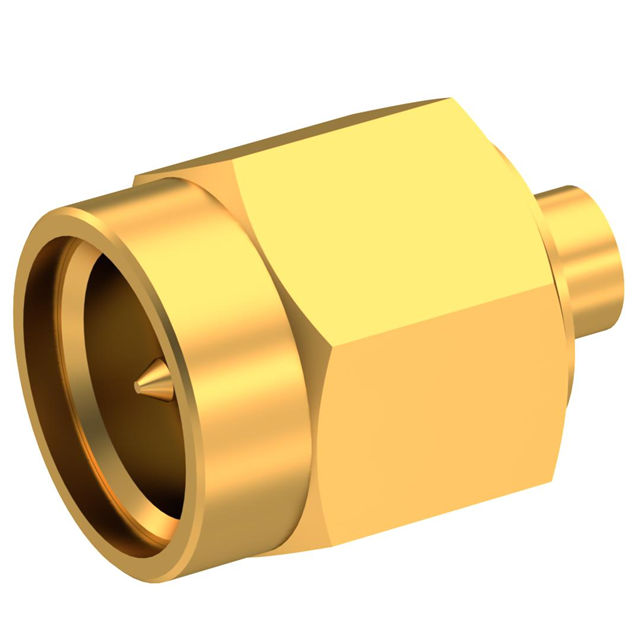

SMA M STR NA SD .085
| Part | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Material | Body Finish | Mating Cycles | Voltage Rating | Housing Color | Frequency - Max [Max] | Fastening Type | Mounting Type | Impedance | Cable Group | Connector Type | Number of Ports | Shield Termination | Connector Style | Center Contact Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 105 ░C | -65 ░C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 | 350 VDC | Gold | 18 GHz | Threaded | Free Hanging (In-Line) | 50 Ohms | RG-405 (.085" Semi Rigid) | Plug Male Pin | 1 | Solder | SMA | Beryllium Copper | Solder |
