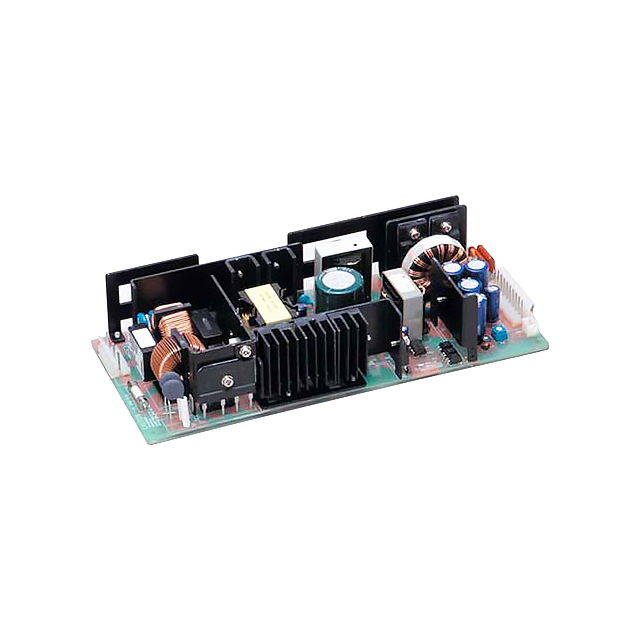

ZWD225 Series

Catalog

AC/DC CONVERTER 5V 24V 225W

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 2	Current - Output 1	Number of Outputs	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output 2	Power (Watts)	Approval Agency	Voltage - Isolation	Voltage - Output 1	Type	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Features
TDK Corporation ZWD225PAF-0524/A	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in	24 V	5 A	2	ITE (Commercial)	70 °C	-10 °C	81 %	9 A	225 W	CE	3000 V	5 V	Enclosed	265 VAC	85 VAC	Chassis Mount	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input
TDK Corporation ZWD225PAF-0524	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in	24 V	5 A	2	ITE (Commercial)	70 °C	-10 °C	81 %	9 A	225 W	CE	3000 V	5 V	Open Frame	265 VAC	85 VAC	Chassis Mount	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input
TDK Corporation ZWD225PAF-0524/L	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in	24 V	5 A	2	ITE (Commercial)	70 °C	-10 °C	81 %	9 A	225 W	CE	3000 V	5 V	Open Frame	265 VAC	85 VAC	Chassis Mount	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input
TDK Corporation ZWD225PAF-0524/J	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in	24 V	5 A	2	ITE (Commercial)	70 °C	-10 °C	81 %	9 A	225 W	CE	3000 V	5 V	Open Frame	265 VAC	85 VAC	Chassis Mount	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input
TDK Corporation ZWD225PAF-0524/JA	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in	24 V	5 A	2	ITE (Commercial)	70 °C	-10 °C	81 %	9 A	225 W	CE	3000 V	5 V	Enclosed	265 VAC	85 VAC	Chassis Mount	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input
TDK Corporation ZWD225PAF-0524/TA	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in	24 V	5 A	2	ITE (Commercial)	70 °C	-10 °C	81 %	9 A	225 W	CE	3000 V	5 V	Enclosed	265 VAC	85 VAC	Chassis Mount	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input
