VPOL15A Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 0.9-3.63V 54W
| Part | Standard Number | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Voltage - Input (Max) [Max] | Mounting Type | Type | Applications | Efficiency | Features | Approval Agency | Voltage - Input (Min) [Min] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

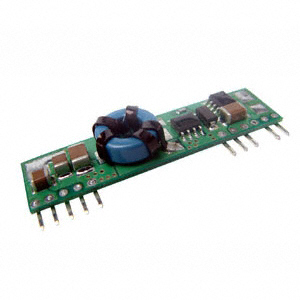

 CUI Inc. | 60950-1 | 54 W | 50.8 mm | 12.7 mm | 2 in | 0.34 in | 0.5 in | 8.6 mm | 1 | 11-SIP Module 10 Leads | 85 °C | -40 C | Active High Enable | 5.5 V | Through Hole | Non-Isolated PoL Module | ITE (Commercial) | 94 % | OCP OTP Remote On/Off SCP UVLO | UL | 3 V | 3.63 V | 0.9 V | 15 A |

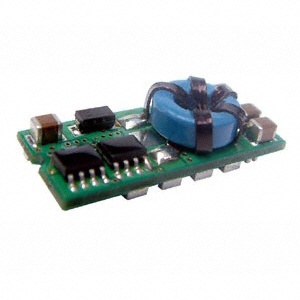

 CUI Inc. | 54 W | 33 mm | 9.3 mm | 1.3 in | 0.53 in | 0.37 in | 13.5 mm | 1 | 6-SMD Module | 85 °C | -40 C | Active High Enable | 5.5 V | Surface Mount | Non-Isolated PoL Module | ITE (Commercial) | 94 % | OCP OTP Remote On/Off SCP UVLO | 3 V | 3.63 V | 0.9 V | 15 A |
