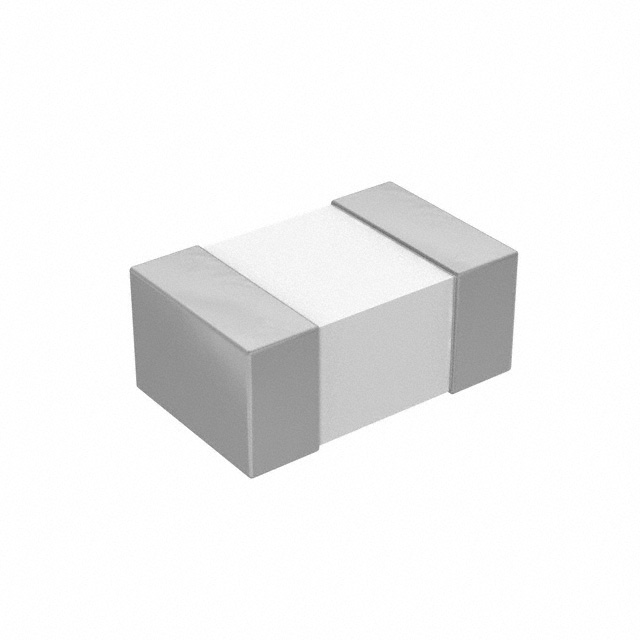

AIMC-0805 Series
Manufacturer: Abracon LLC
Beta
⌘K
RF INDUCTORS - SMD IND 47.00 NH 0.300 A 700.00 MOHM
| Part | Type | Mounting Type | Q @ Freq [custom] | Q @ Freq [custom] | Package / Case | Inductance Frequency - Test | Inductance | Supplier Device Package | Shielding | Tolerance | Frequency - Self Resonant | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | DC Resistance (DCR) | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | Multilayer | Surface Mount | 100 MHz | 18 | 0805 | 100 MHz | 47 nH | 0805 (2012 Metric) | Unshielded | 5 % | 900 MHz | 0.3 A | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 700 mOhm | -55 C | 125 °C | Ceramic |
