16_TNC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

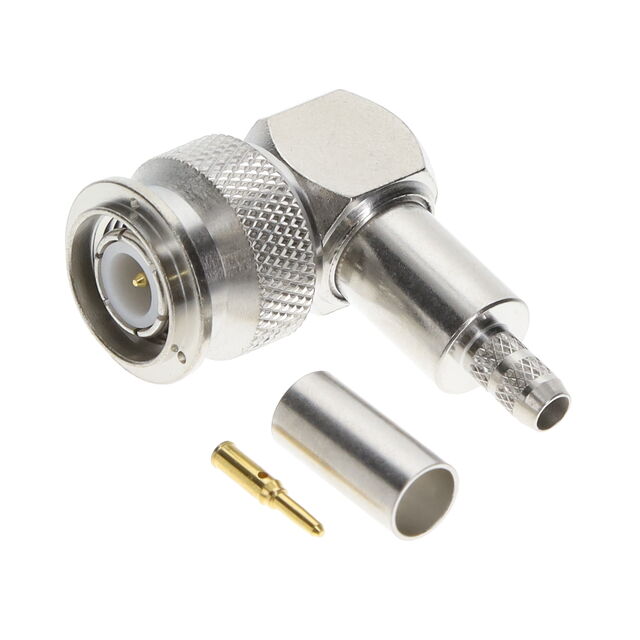

16_TNC-50-3-21/133_NE
| Part | Mating Cycles | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Cable Group | Frequency - Max [Max] | Mounting Type | Number of Ports | Connector Style | Impedance | Fastening Type | Connector Type | Contact Termination | Shield Termination | Housing Color | Center Contact Material | Body Finish | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | RG-400 | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | ||||||
 Huber+Suhner, Inc. | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Solder | Crimp | Silver | Brass | |||
 Huber+Suhner, Inc. | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 188 316 RG-174 | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Solder | Crimp | Silver | Brass | White Bronze | 500 V |
 Huber+Suhner, Inc. | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 223 400 RG-142 | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Solder | Clamp | Silver | Brass | White Bronze | 500 V |
 Huber+Suhner, Inc. | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Solder | Crimp | Silver | Brass | |||
 Huber+Suhner, Inc. | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | RG-58 | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Solder | Crimp | Silver | Brass | White Bronze | 500 V |
 Huber+Suhner, Inc. | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 223 400 RG-142 | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Solder | Crimp | Silver | Brass | White Bronze | 500 V |
 Huber+Suhner, Inc. | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 223 RG-142 | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Crimp | Crimp | Silver | Brass Bronze | White Bronze | 500 V |
 Huber+Suhner, Inc. | 500 | Gold | Polytetrafluoroethylene (PTFE) | -60 °C | 165 °C | Brass | RG-B4C | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Crimp | Clamp | Silver | Beryllium Copper | Nickel | 500 V |
 Huber+Suhner, Inc. | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | LMR-400 | 11 GHz | Free Hanging (In-Line) Right Angle | 1 | TNC | 50 Ohms | Threaded | Plug Male Pin | Crimp | Clamp | Silver | Brass | White Bronze | 500 V |
