INA186-Q1 Series

AEC-Q100, 40-V, bidirectional, high-precision current sense amplifier w/ picoamp input bias & ENABLE

Catalog

AEC-Q100, 40-V, bidirectional, high-precision current sense amplifier w/ picoamp input bias & ENABLE

Part	Gain Bandwidth Product	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Type	Amplifier Type	Current - Input Bias	Number of Circuits	Slew Rate	Voltage - Supply Span (Max) [Max]	Current - Supply	Package / Case	Supplier Device Package	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	-3db Bandwidth	Qualification	Grade	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Channels per IC	Current - Supply (Main IC)	Supplied Contents	Board Type	Utilized IC / Part
Texas Instruments INA186A3IDDFR	45 kHz	-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	SOT-23-8 Thin TSOT-23-8	TSOT-23-8	3 µV	1.7 V

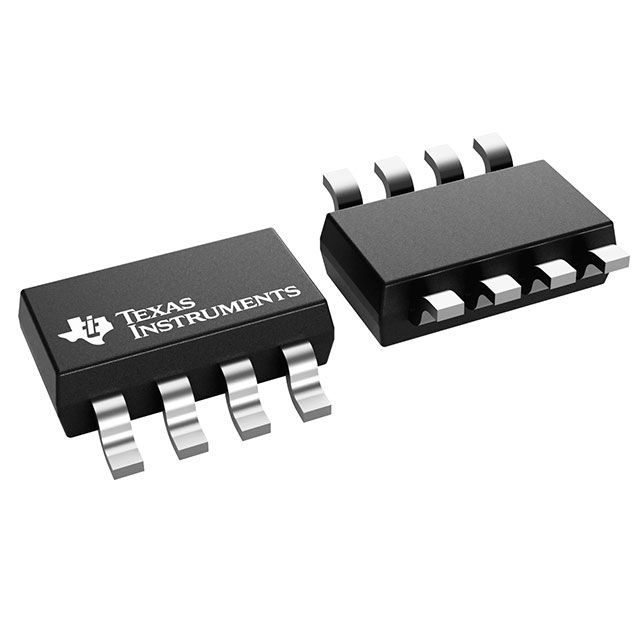

Texas Instruments INA186A3QDDFRQ1		-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	SOT-23-8 Thin TSOT-23-8	TSOT-23-8	3 µV	1.7 V	35 kHz	AEC-Q100	Automotive

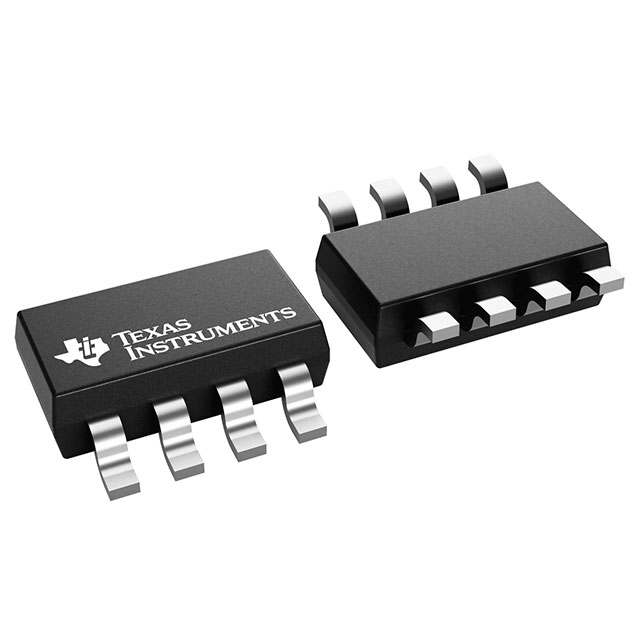

Texas Instruments INA186A5QDDFRQ1		-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	SOT-23-8 Thin TSOT-23-8	TSOT-23-8	3 µV	1.7 V	27 kHz	AEC-Q100	Automotive

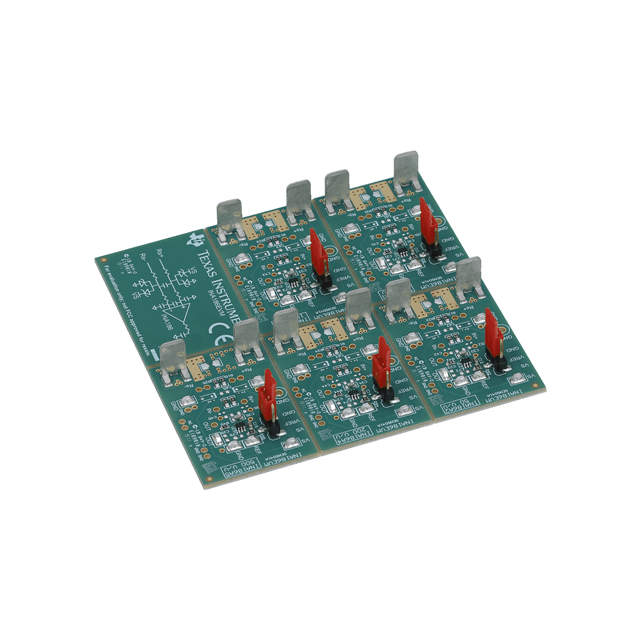

Texas Instruments INA186EVM					Rail-to-Rail Single-Ended	Current Sense			0.3 V/Ás							45 kHz			1.7 V	5.5 V	1 - Single	48 µA	Board(s)	Fully Populated	INA186
Texas Instruments INA186A3IDCKT	35 kHz	-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	6-TSSOP SC-88 SOT-363	SC-70-6	3 µV	1.7 V
Texas Instruments INA186A3QDCKRQ1	35 kHz	-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	6-TSSOP SC-88 SOT-363	SC-70-6	3 µV	1.7 V		AEC-Q100	Automotive
Texas Instruments INA186A1IDDFR	45 kHz	-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	SOT-23-8 Thin TSOT-23-8	TSOT-23-8	3 µV	1.7 V
Texas Instruments INA186A2IDCKR	37 kHz	-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	6-TSSOP SC-88 SOT-363	SC-70-6	3 µV	1.7 V
Texas Instruments INA186A2QDBVRQ1		-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	SC-74A SOT-753	SOT-23-5	3 µV	1.7 V	37 kHz	AEC-Q100	Automotive
Texas Instruments INA186A1IDDFT	45 kHz	-40 °C	125 °C	Surface Mount	Rail-to-Rail	Current Sense	500 pA	1	0.3 V/Ás	5.5 V	48 µA	SOT-23-8 Thin TSOT-23-8	TSOT-23-8	3 µV	1.7 V

Catalog

AEC-Q100, 40-V, bidirectional, high-precision current sense amplifier w/ picoamp input bias & ENABLE

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system designWide common-mode voltage range, VCM: –0.2 V to +40 V with survivability up to 42 V (recommended for automotive 12-V battery applications)Low input bias currents, IIB: 500 pA (typical)Low power:Low supply voltage, VS: 1.7 V to 5.5 VLow quiescent current, IQ: 48 µA (typical)Accuracy:Common-mode rejection ratio: 120 dB (minimum)Gain error, EG: ±1% (maximum)Gain drift: 10 ppm/°C (maximum)Offset voltage, VOS: ±50 µV (maximum)Offset drift: 0.5 µV/°C (maximum)Bidirectional current sensing capabilityGain options:INA186A1-Q1: 25 V/VINA186A2-Q1: 50 V/VINA186A3-Q1: 100 V/VINA186A4-Q1: 200 V/VINA186A5-Q1: 500 V/VAEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system designWide common-mode voltage range, VCM: –0.2 V to +40 V with survivability up to 42 V (recommended for automotive 12-V battery applications)Low input bias currents, IIB: 500 pA (typical)Low power:Low supply voltage, VS: 1.7 V to 5.5 VLow quiescent current, IQ: 48 µA (typical)Accuracy:Common-mode rejection ratio: 120 dB (minimum)Gain error, EG: ±1% (maximum)Gain drift: 10 ppm/°C (maximum)Offset voltage, VOS: ±50 µV (maximum)Offset drift: 0.5 µV/°C (maximum)Bidirectional current sensing capabilityGain options:INA186A1-Q1: 25 V/VINA186A2-Q1: 50 V/VINA186A3-Q1: 100 V/VINA186A4-Q1: 200 V/VINA186A5-Q1: 500 V/V

Description

The INA186-Q1 is an automotive, low-power, voltage-output, current-sense amplifier (also called a current-shunt monitor). This device is commonly used for monitoring systems directly connected to an automotive 12-V battery. The INA186-Q1 can sense drops across shunts at common-mode voltages from –0.2 V to +40 V, independent of the supply voltage. In addition, the input pins have an absolute maximum voltage of 42V. The low input bias current of the INA186-Q1 permits the use of larger current-sense resistors, thus providing accurate current measurements in the microamp range. The low offset voltage of the zero-drift architecture extends the dynamic range of the current measurement. This feature allows for smaller sense resistors with lower power loss, while still providing accurate current measurements. The INA186-Q1 operates from a single 1.7-V to 5.5-V power supply, and draws a maximum of 90 µA of supply current . Five fixed gain options are available: 25 V/V, 50 V/V, 100 V/V, 200 V/V, or 500 V/V. The device is specified over the operating temperature range of –40°C to +125°C, and offered in SC70, SOT-23 (5), and SOT-23 (8) packages. The SC70 and SOT-23 (DDF) packages supports bidirectional current measurement, whereas the SOT-23 (DBV) only supports current measurement in one direction. The INA186-Q1 is an automotive, low-power, voltage-output, current-sense amplifier (also called a current-shunt monitor). This device is commonly used for monitoring systems directly connected to an automotive 12-V battery. The INA186-Q1 can sense drops across shunts at common-mode voltages from –0.2 V to +40 V, independent of the supply voltage. In addition, the input pins have an absolute maximum voltage of 42V. The low input bias current of the INA186-Q1 permits the use of larger current-sense resistors, thus providing accurate current measurements in the microamp range. The low offset voltage of the zero-drift architecture extends the dynamic range of the current measurement. This feature allows for smaller sense resistors with lower power loss, while still providing accurate current measurements. The INA186-Q1 operates from a single 1.7-V to 5.5-V power supply, and draws a maximum of 90 µA of supply current . Five fixed gain options are available: 25 V/V, 50 V/V, 100 V/V, 200 V/V, or 500 V/V. The device is specified over the operating temperature range of –40°C to +125°C, and offered in SC70, SOT-23 (5), and SOT-23 (8) packages. The SC70 and SOT-23 (DDF) packages supports bidirectional current measurement, whereas the SOT-23 (DBV) only supports current measurement in one direction.
