ENG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Insert Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Feature	Material Flammability Rating	Number of Positions	Shielding	Ingress Protection	Mounting Type	Color	Shell Size - Insert	Current Rating (Amps)	Primary Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Orientation [custom]	Connector Type	Shell Finish	Shell Material	Shell Size - Insert [custom]	Termination	Shell Size - Insert [custom]	Accessory Type	For Use With/Related Products
LEMO ENG.1B.304.GLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0	4	Shielded	IP50 - Dust Protected	Panel Mount	Beige	304	10 A	Plastic	Ground	250 °C	-50 °C	Push-Pull	G	Receptacle Female Sockets
LEMO ENG.1B.314.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0	14	Shielded	IP50 - Dust Protected	Panel Mount	Silver	314	2 A	Metal	Ground	250 °C	-55 C	Push-Pull	G	Receptacle Female Sockets	Chrome	Brass
LEMO ENG.1B.308.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0	8	Shielded	IP50 - Dust Protected	Panel Mount	Silver	308	5 A	Metal	Ground	250 °C	-55 C	Push-Pull	G	Receptacle Female Sockets	Chrome	Brass
LEMO ENG.1B.316.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0	16	Shielded	IP50 - Dust Protected	Panel Mount	Silver		1.5 A	Metal	Ground	250 °C	-55 C	Push-Pull	G	Receptacle Female Sockets	Chrome	Brass	316
LEMO ENG.1B.302.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0	2	Shielded	IP50 - Dust Protected	Panel Mount	Silver	302	15 A	Metal	Ground	250 °C	-55 C	Push-Pull	G	Receptacle Female Sockets	Chrome	Brass

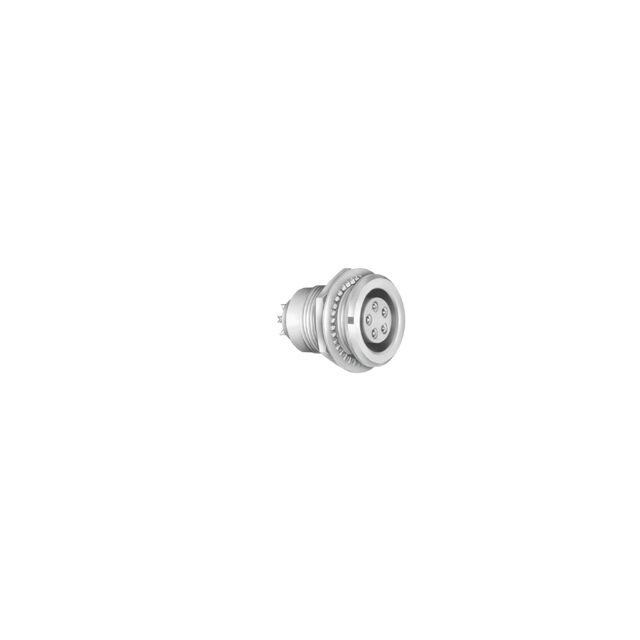

LEMO ENG.1B.303.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0		Shielded	IP50 - Dust Protected	Panel Mount	Silver	303	12 Amps	Metal	Ground	250 °C	-55 C	Push-Pull	G	Receptacle Female Sockets	Chrome	Brass
LEMO ENG.1B.304.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0	4	Shielded	IP50 - Dust Protected	Panel Mount	Silver	304	10 A	Metal	Ground	250 °C	-55 C	Push-Pull	G	Receptacle Female Sockets	Chrome	Brass

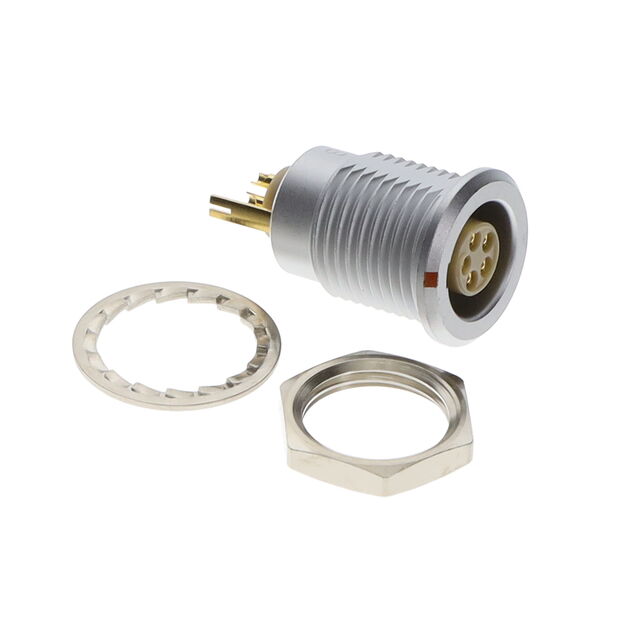

LEMO ENG.1B.305.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0	5	Shielded	IP50 - Dust Protected	Panel Mount	Silver	305	9 A	Metal	Ground	250 °C	-55 C	Push-Pull	G	Receptacle Female Sockets	Chrome	Brass
LEMO ENG.1B.307.CYM	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Gold	Bulkhead - Rear Side Nut	UL94 V-0	7	Shielded	IP50 - Dust Protected	Panel Mount	Silver		7 A	Metal	Ground	250 °C	-55 C	Push-Pull	G	Receptacle Female Sockets	Chrome	Brass		Crimp	307
LEMO ENG.1B.221.BA																											Earthing Crown	1B Series Connector
