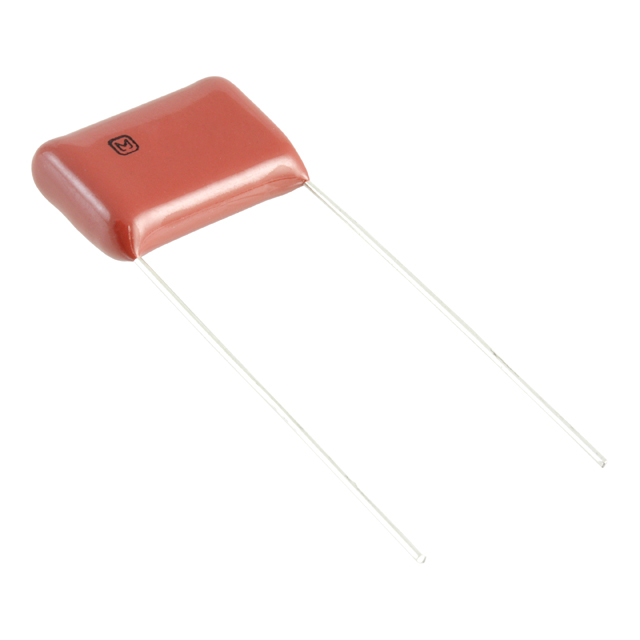

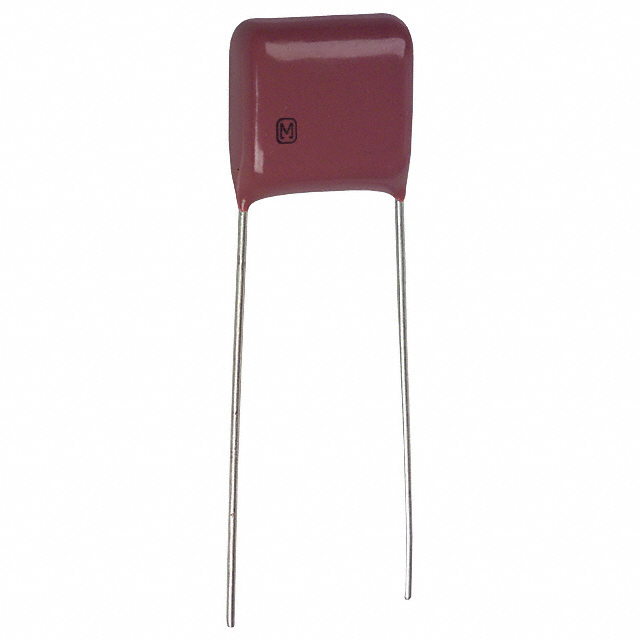

ECQ-E2564 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.56UF 5% 250VDC RADIAL

Part	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max)	Height - Seated (Max) [Max]	Lead Spacing [x]	Lead Spacing [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2564JB	Polyester Metallized	12.9 mm	0.508 in	Radial	250 V	0.264 "	6.7 mm	12.3 mm	0.484 in	560 nF	5 %	-40 C	105 ░C	Through Hole	PC Pins	General Purpose	0.394 in	10 mm
Panasonic Electronic Components ECQ-E2564KS	Polyester Metallized			Radial	250 V		0.276 in	0.906 "		560 nF	10 %	-40 C	85 °C	Through Hole	PC Pins	General Purpose			13.5 mm	0.532 "	0.787 in	20 mm
Panasonic Electronic Components ECQ-E2564JFW	Polyester Metallized		18 mm	Radial	250 V	0.217 in		18.5 mm	0.728 in	560 nF	5 %	-40 C	105 ░C	Through Hole	PC Pins	General Purpose	0.394 in	10 mm					5.5 mm	0.709 in
Panasonic Electronic Components ECQ-E2564JB3	Polyester Metallized			Radial	250 V	0.264 "	6.7 mm	12.3 mm	0.484 in	560 nF	5 %	-40 C	105 ░C	Through Hole	PC Pins	General Purpose	0.197 "	5 mm		0.665 in					16.9 mm
Panasonic Electronic Components ECQ-E2564JF3	Polyester Metallized		18 mm	Radial	250 V	0.217 in		18.5 mm	0.728 in	560 nF	5 %	-40 C	105 ░C	Through Hole	PC Pins	General Purpose	0.197 "	5 mm					5.5 mm	0.709 in
Panasonic Electronic Components ECQ-E2564JF	Polyester Metallized			Radial	250 V	0.217 in		18.5 mm	0.728 in	560 nF	5 %	-40 C	105 ░C	Through Hole	PC Pins	General Purpose	0.591 in	15 mm		0.551 in			5.5 mm		14 mm
Panasonic Electronic Components ECQ-E2564KB	Polyester Metallized	12.9 mm	0.508 in	Radial	250 V	0.264 "	6.7 mm	12.3 mm	0.484 in	560 nF	10 %	-40 C	105 ░C	Through Hole	PC Pins	General Purpose	0.394 in	10 mm
Panasonic Electronic Components ECQ-E2564JFB	Polyester Metallized		18 mm	Radial	250 V	0.217 in		18.5 mm	0.728 in	560 nF	5 %	-40 C	105 ░C	Through Hole	PC Pins	General Purpose	0.394 in	10 mm					5.5 mm	0.709 in
Panasonic Electronic Components ECQ-E2564KFB	Polyester Metallized		18 mm	Radial	250 V	0.217 in		18.5 mm	0.728 in	560 nF	10 %	-40 C	105 ░C	Through Hole	PC Pins	General Purpose	0.394 in	10 mm					5.5 mm	0.709 in
