228215 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

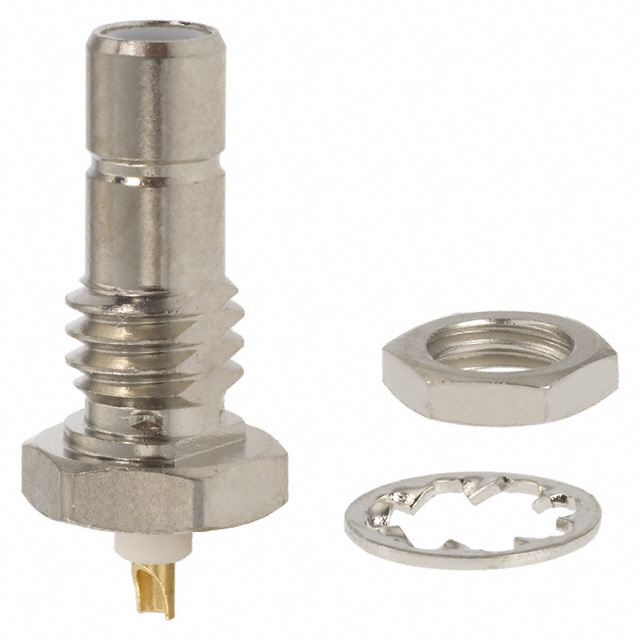

CONN SMB RCPT STR 50 OHM SOLDER
| Part | Dielectric Material | Shield Termination | Body Finish | Connector Type | Features | Center Contact Material | Number of Ports | Includes | Body Material | Mating Cycles | Fastening Type | Center Contact Plating | Voltage Rating | Connector Style | Impedance | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Contact Termination | Mounting Feature | Insertion Loss | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polytetrafluoroethylene (PTFE) | Solder | Nickel | Male Pin Receptacle | Extended Insulation | Beryllium Copper | 1 | 1 Connector 1 Lockwasher 1 Nut | Brass | 500 | Snap-On | Gold | 335 V | SMB | 50 Ohms | -65 ░C | 165 °C | 4 GHz | Solder Cup | Bulkhead - Front Side Nut | 0.3 dB | Silver |
