2466243 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

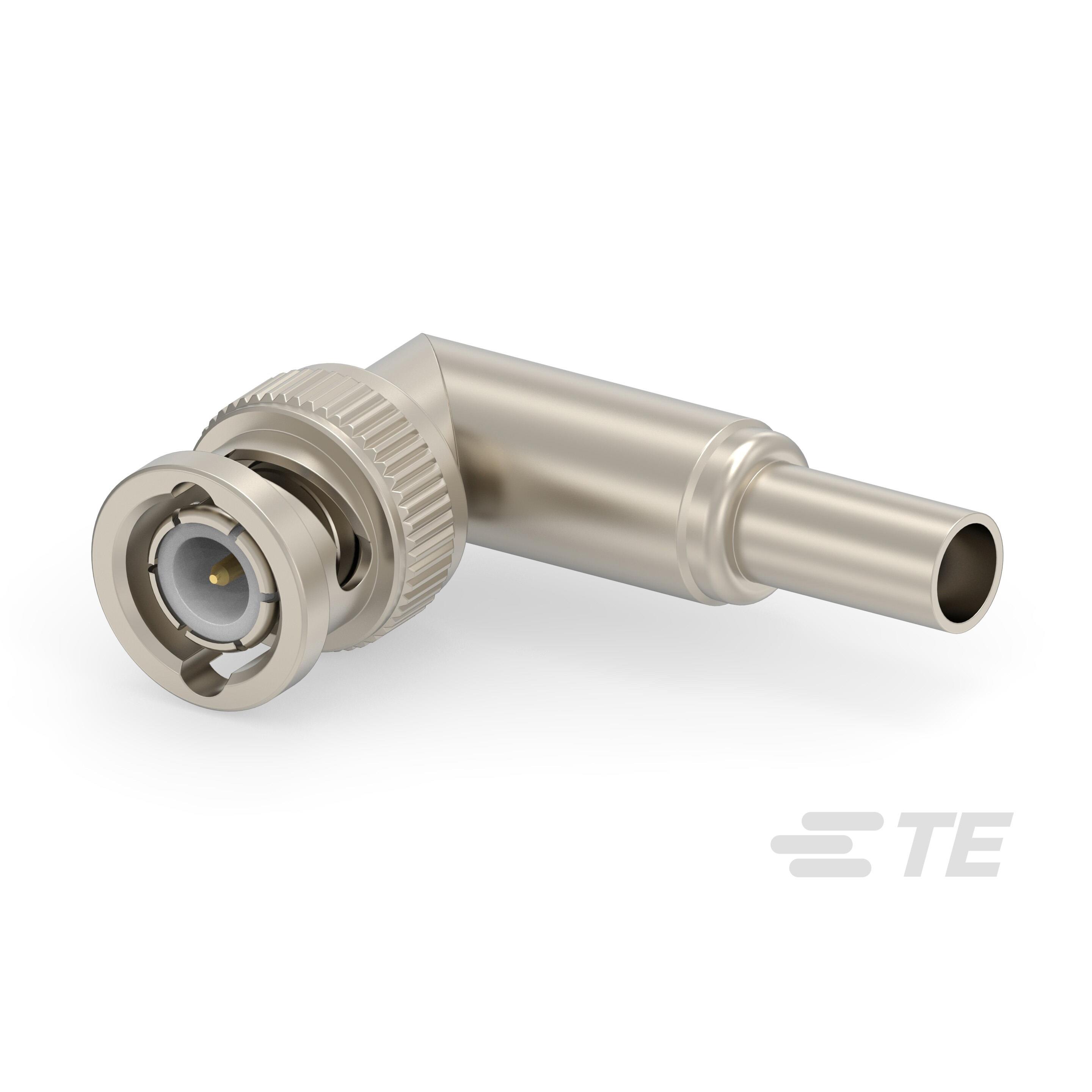

CONN BNC PLUG R/A 50 OHM CRIMP
| Part | Connector Type | Housing Color | Impedance | Body Finish | Dielectric Material | Cable Group | Cable Group | Shield Termination | Center Contact Plating | Center Contact Material | Contact Termination | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Connector Style | Mounting Type | Fastening Type | Number of Ports | Mating Cycles | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pin Plug | Silver | 50 Ohms | Nickel | Polytetrafluoroethylene (PTFE) | 141 | RG-58 | Crimp | Gold | Phosphor Bronze | Crimp | Brass | -65 ░C | 165 °C | 4 GHz | BNC | Free Hanging (In-Line) Right Angle | Bayonet Lock | 1 | 500 | 1 Connector 1 Contact 1 Ferrule |
