YC104-JR Series
Manufacturer: YAGEO
Beta
⌘K

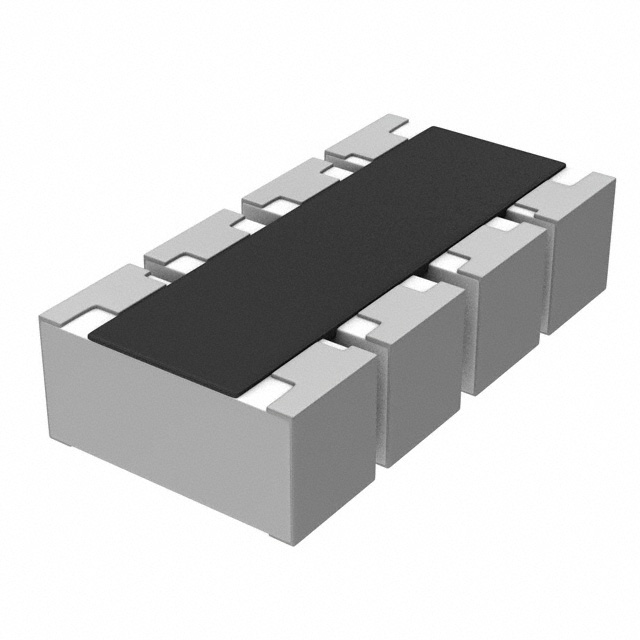

RES ARRAY 4 RES 8.2K OHM 0602
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Resistance (Ohms) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Number of Resistors | Power Per Element | Temperature Coefficient | Grade | Number of Pins | Mounting Type | Tolerance | Package / Case | Circuit Type | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | 0.018 " | 0.45 mm | 8.2 kOhms | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | |
YAGEO | 0.018 " | 0.45 mm | 51 Ohms | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | |
YAGEO | 0.018 " | 0.45 mm | 24 Ohms | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | |
YAGEO | 0.018 " | 0.45 mm | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | 680 Ohms | |
YAGEO | 0.018 " | 0.45 mm | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | 10 Ohms | |
YAGEO | 0.018 " | 0.45 mm | 39 Ohms | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | |
YAGEO | 0.018 " | 0.45 mm | 47 Ohms | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | |
YAGEO | 0.018 " | 0.45 mm | 5.1 kOhms | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | |
YAGEO | 0.018 " | 0.45 mm | 33 Ohms | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | |
YAGEO | 0.018 " | 0.45 mm | 0.6 mm | 0.055 " | 1.4 mm | 0.024 " | 4 | 31 mW | 200 ppm/°C | Automotive | 8 | Surface Mount | 5 % | 0502 (1406 Metric) Convex Long Side Terminals | Isolated | AEC-Q200 | -55 C | 125 °C | DDRAM SDRAM | 68 kOhms |
