3851A Series
Manufacturer: Bourns Inc.
Beta
⌘K

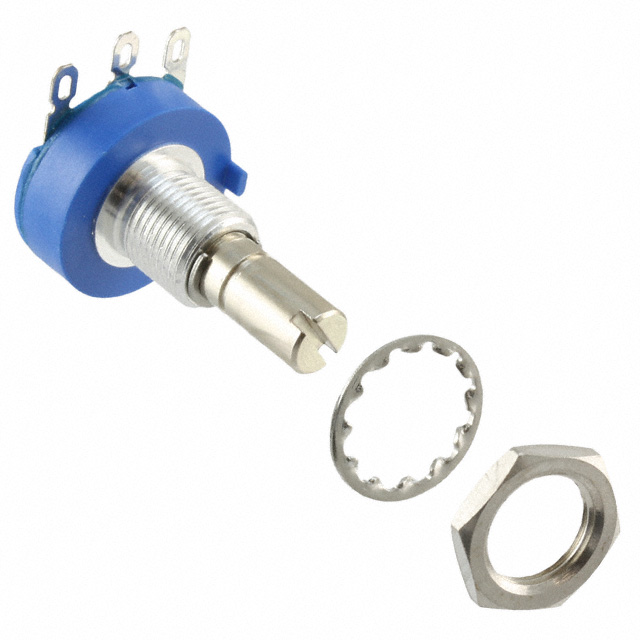

POT 1K OHM 1W PLASTIC LINEAR
| Part | Resistive Material | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Turns | Adjustment Type | Rotation | Tolerance | Taper | Termination Style | Bushing Thread | Resistance (Ohms) | Actuator Length [x] | Actuator Length [x] | Size - Body [diameter] | Size - Body [diameter] | Temperature Coefficient | Built in Switch | Number of Gangs | Actuator Type | Mounting Type | Power (Watts) | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Conductive Plastic | 6.35 mm | 0.25 in | 1 | User Defined | 280 ° | 20 % | Linear | Solder Lug | 3/8-32 | 1k | 12.7 mm | 0.5 in | 19.05 mm | 0.75 " | 1000 ppm/°C | None | 1 | Slotted | Panel Mount | 1 W | ||
Bourns Inc. | Conductive Plastic | 6.35 mm | 0.25 in | 1 | User Defined | 280 ° | 20 % | Linear | Solder Lug | 3/8-32 | 100k | 15.88 mm | 0.625 in | 19.05 mm | 0.75 " | 1000 ppm/°C | None | 1 | Slotted | Panel Mount | 1 W | ||
 Bourns Inc. | Conductive Plastic | 6.35 mm | 0.25 in | 1 | User Defined | 280 ° | 20 % | Linear | Solder Lug | 3/8-32 | 22.23 mm | 0.875 in | 19.05 mm | 0.75 " | 1000 ppm/°C | None | 1 | Slotted | Panel Mount | 1 W | 2.5 kOhms | ||
 Bourns Inc. | Conductive Plastic | 6.35 mm | 0.25 in | 1 | User Defined | 280 ° | 20 % | Linear | Solder Lug | 3/8-32 | 10k | 22.23 mm | 0.875 in | 19.05 mm | 0.75 " | 1000 ppm/°C | None | 1 | Slotted | Panel Mount | 1 W | ||
 Bourns Inc. | Conductive Plastic | 6.35 mm | 0.25 in | 1 | User Defined | 280 ° | 20 % | Linear | Solder Lug | 3/8-32 | 1k | 22.23 mm | 0.875 in | 19.05 mm | 0.75 " | 1000 ppm/°C | None | 1 | Slotted | Panel Mount | 1 W | ||
Bourns Inc. | Conductive Plastic | 6.35 mm | 0.25 in | 1 | User Defined | 280 ° | 20 % | Linear | Solder Lug | 3/8-32 | 22.23 mm | 0.875 in | 19.05 mm | 0.75 " | 1000 ppm/°C | None | 1 | Slotted | Panel Mount | 1 W | 5 kOhms |
