EEG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Color	Ingress Protection	Shell Material	Fastening Type	Number of Positions	Primary Material	Contact Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Orientation [custom]	Contact Finish - Mating	Termination	Current Rating (Amps)	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Shell Finish	Mounting Type	Insert Material	Shielding	Shell Size - Insert [custom]
LEMO EEG.1B.304.CLV	Silver	IP50 - Dust Protected	Brass	Push-Pull	4	Metal	Bronze	304	-55 C	250 °C	G	Gold	Solder	6 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount Right Angle Through Hole	Polyetheretherketone (PEEK)	Shielded
LEMO EEG.1B.307.CLN	Silver	IP50 - Dust Protected	Brass	Push-Pull	7	Metal	Bronze		-55 C	250 °C	G	Gold	Solder	7 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Shielded	307
LEMO EEG.1B.307.CYM	Silver	IP50 - Dust Protected	Brass	Push-Pull	7	Metal	Bronze		-55 C	250 °C	G	Gold	Crimp	7 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount	Polyetheretherketone (PEEK)	Shielded	307
LEMO EEG.1B.307.CLL	Silver	IP50 - Dust Protected	Brass	Push-Pull	7	Metal	Bronze		-55 C	250 °C	G	Gold		7 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount	Polyetheretherketone (PEEK)	Shielded	307
LEMO EEG.1B.306.CYM	Silver	IP50 - Dust Protected	Brass	Push-Pull	6	Metal	Bronze	306	-55 C	250 °C	G	Gold	Crimp	7 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount	Polyetheretherketone (PEEK)	Shielded
LEMO EEG.1B.302.CYMY	Silver	IP50 - Dust Protected	Brass	Push-Pull	2	Metal	Bronze	302	-55 C	250 °C	G	Gold	Crimp	15 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount	Polyetheretherketone (PEEK)	Shielded

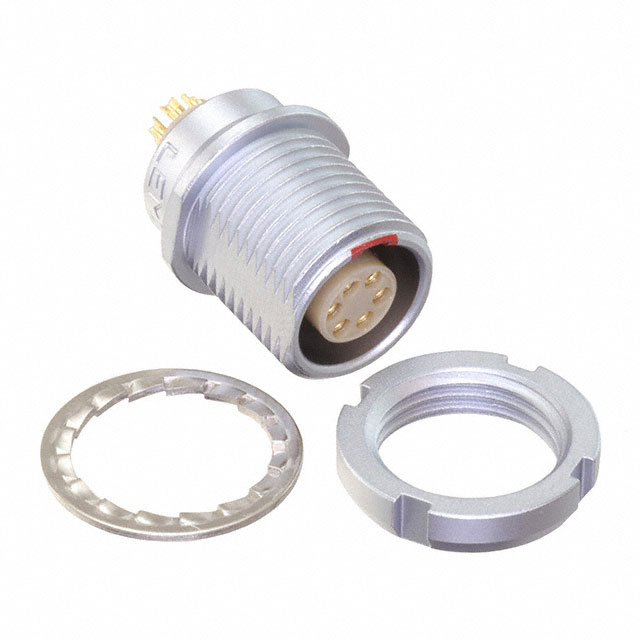

LEMO EEG.1B.306.CLL	Silver	IP50 - Dust Protected	Brass	Push-Pull	6	Metal	Bronze	306	-55 C	250 °C	G	Gold		7 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount	Polyetheretherketone (PEEK)	Shielded
LEMO EEG.1B.310.CLN	Silver	IP50 - Dust Protected	Brass	Push-Pull	10	Metal	Bronze	310	-55 C	250 °C	G	Gold	Solder	2.5 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Shielded
LEMO EEG.1B.306.CLN	Silver	IP50 - Dust Protected	Brass	Push-Pull	6	Metal	Bronze	306	-55 C	250 °C	G	Gold	Solder	7 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Shielded
LEMO EEG.1B.305.CLV	Silver	IP50 - Dust Protected	Brass	Push-Pull	5	Metal	Bronze	305	-55 C	250 °C	G	Gold	Solder	6 A	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Receptacle Female Sockets	UL94 V-0	Chrome	Panel Mount Right Angle Through Hole	Polyetheretherketone (PEEK)	Shielded
