052 Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 5.62"L X 3.25"W

Part	Weight	Weight	Ratings	Material	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material Flammability Rating	Area (L x W)	Area (L x W)	Features	Height	Height	Design	Thickness	Thickness	Color

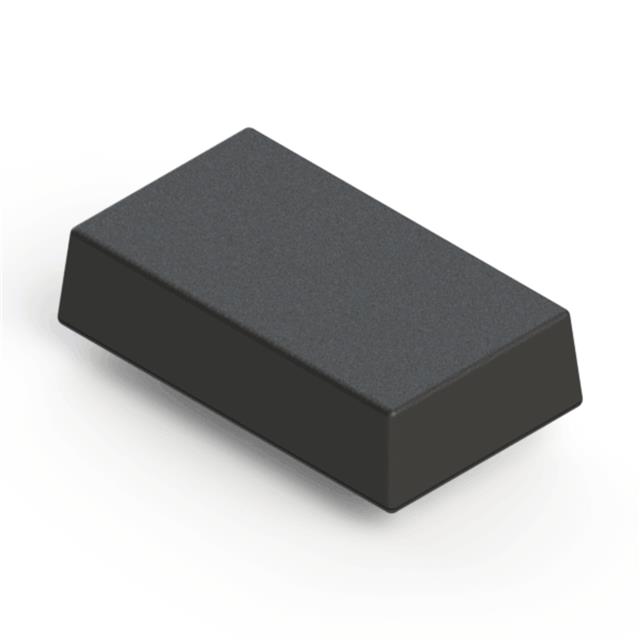

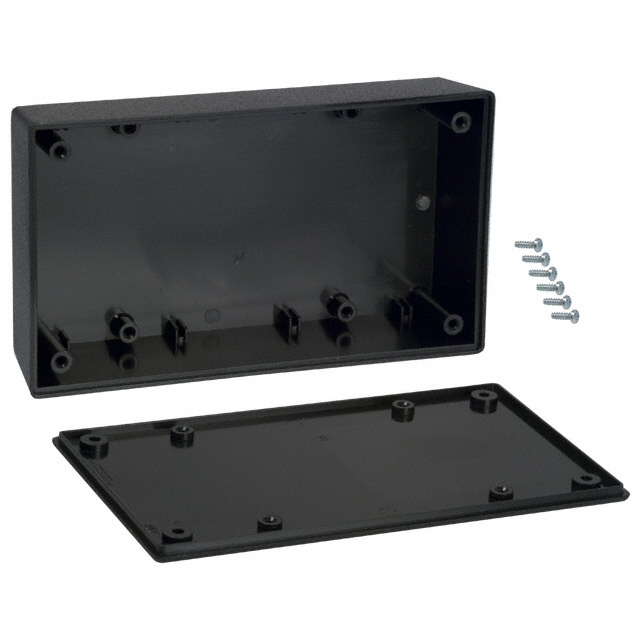

Serpac 052,BK	99.79 g	0.22 lb	IP40 NEMA 1	ABS Plastic	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	UL94 HB	18.3 in²	118 cm²	PCB Supports	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in	Black

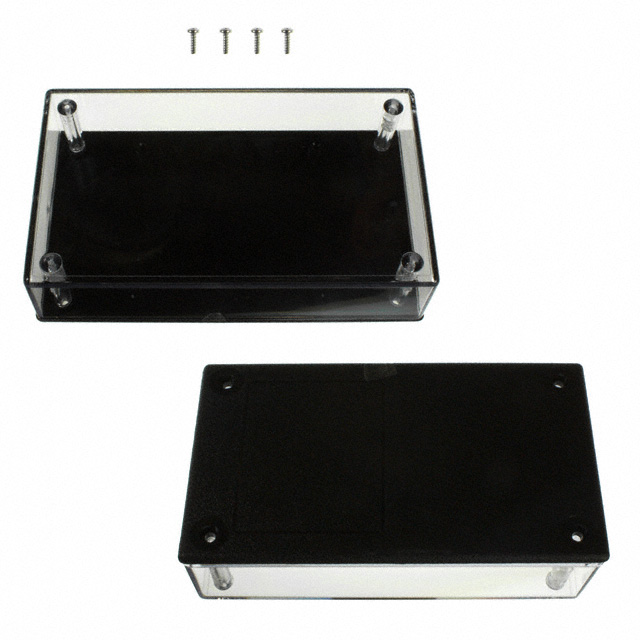

Serpac 052C,BK	99.79 g	0.22 lb	IP40 NEMA 1	Plastic Polycarbonate	Box	5.62 "	142.75 mm	82.55 mm	3.25 "		18.3 in²	118 cm²	PCB Supports	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in	Black Clear Cover/Door

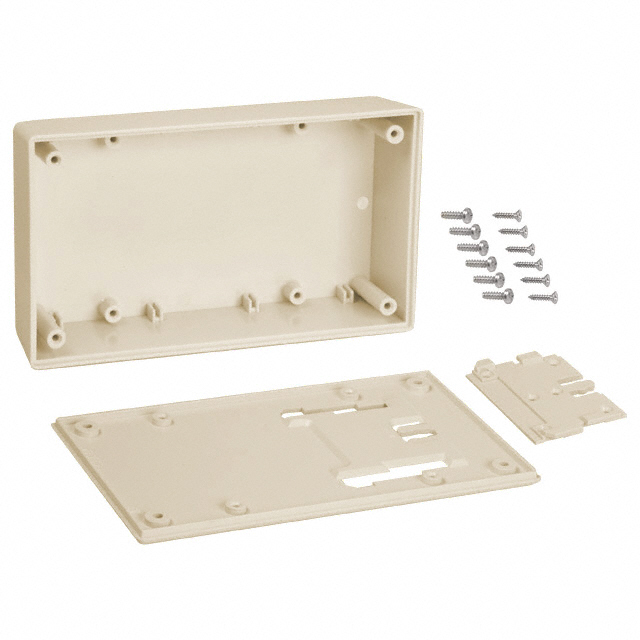

Serpac 052W,AL	99.79 g	0.22 lb	IP40 NEMA 1	ABS Plastic	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	UL94 HB	18.3 in²	118 cm²	PCB Supports Wall Mount	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in	Almond

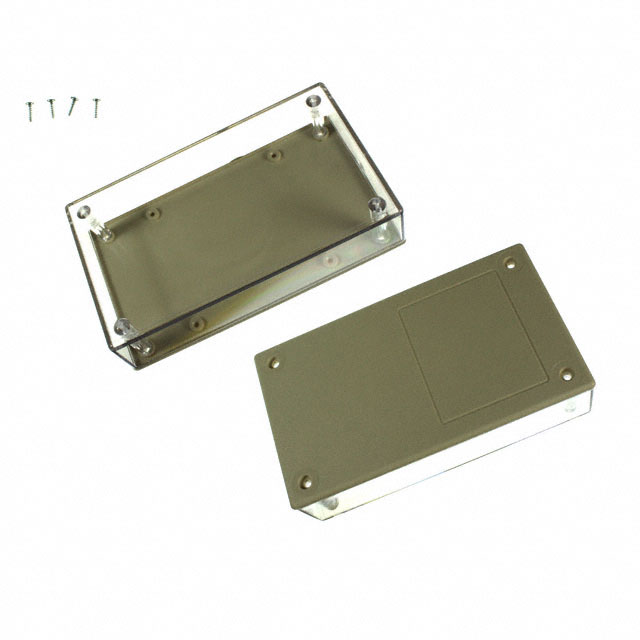

Serpac 052C,AL	99.79 g	0.22 lb	IP40 NEMA 1	Plastic Polycarbonate	Box	5.62 "	142.75 mm	82.55 mm	3.25 "		18.3 in²	118 cm²	PCB Supports	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in

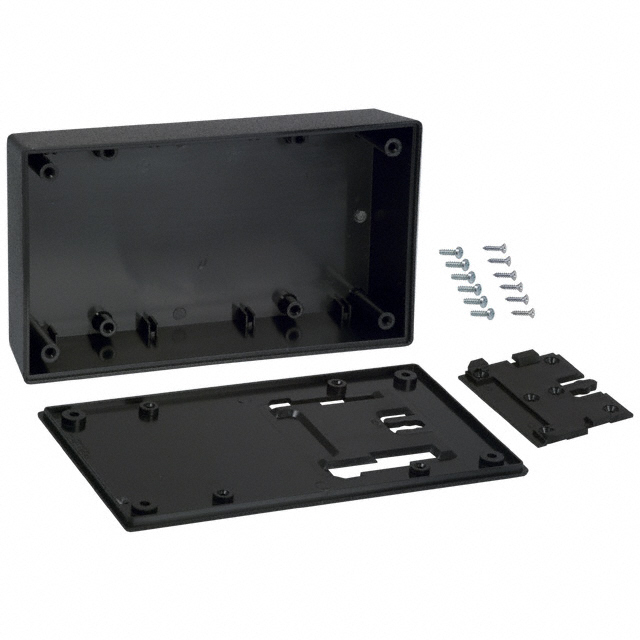

Serpac 052W,BK	99.79 g	0.22 lb	IP40 NEMA 1	ABS Plastic	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	UL94 HB	18.3 in²	118 cm²	PCB Supports Wall Mount	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in	Black

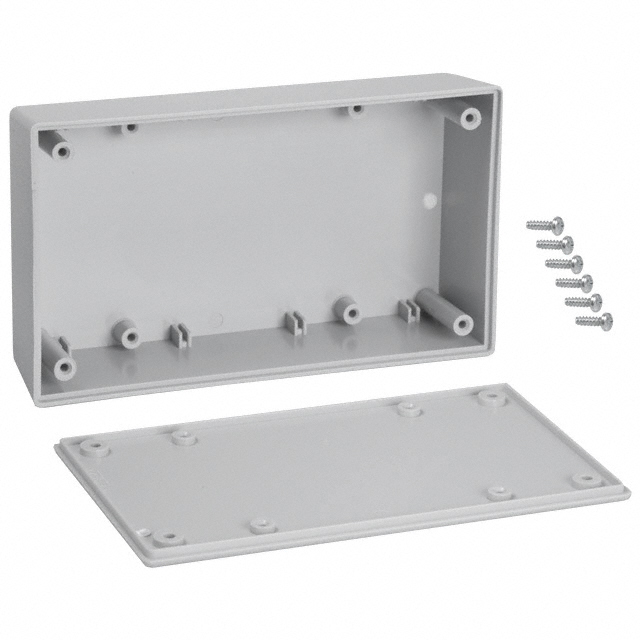

Serpac 052,GR	99.79 g	0.22 lb	IP40 NEMA 1	ABS Plastic	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	UL94 HB	18.3 in²	118 cm²	PCB Supports	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in	Gray

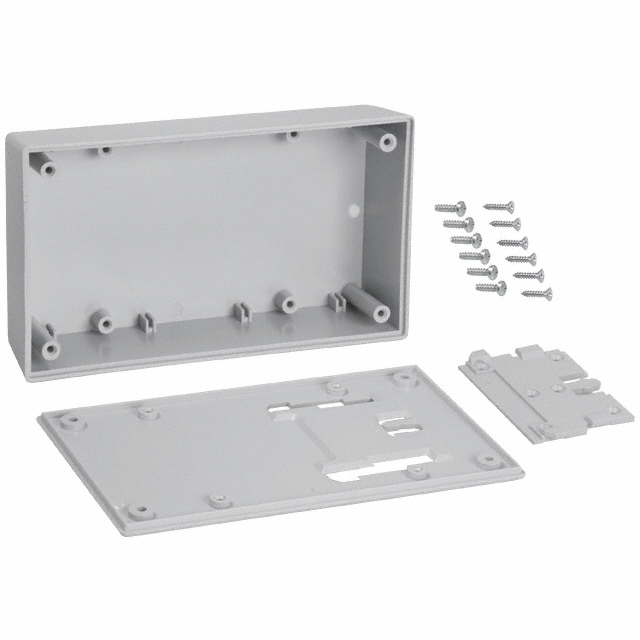

Serpac 052W,GY	99.79 g	0.22 lb	IP40 NEMA 1	ABS Plastic	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	UL94 HB	18.3 in²	118 cm²	PCB Supports Wall Mount	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in	Gray

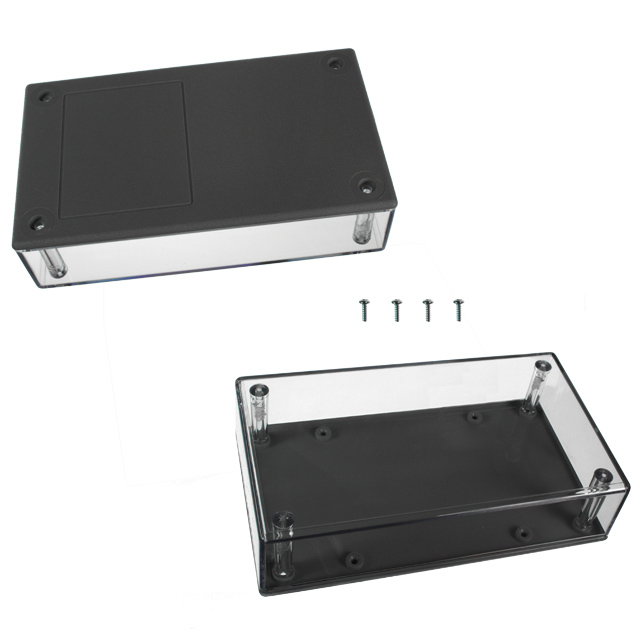

Serpac 052C,GY	99.79 g	0.22 lb	IP40 NEMA 1	Plastic Polycarbonate	Box	5.62 "	142.75 mm	82.55 mm	3.25 "		18.3 in²	118 cm²	PCB Supports	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in	Clear Cover/Door Gray

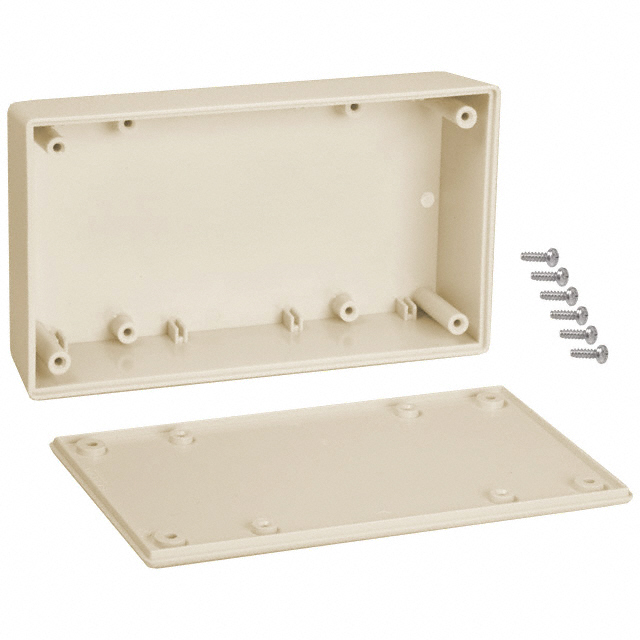

Serpac 052,AL	99.79 g	0.22 lb	IP40 NEMA 1	ABS Plastic	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	UL94 HB	18.3 in²	118 cm²	PCB Supports	1.4 in	35.56 mm	Cover Included Hand Held	2.54 mm	0.1 in	Almond
