857-034 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.156

...

Part	Mounting Type	Color	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Gender	Contact Finish	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Number of Positions	Contact Material	Read Out	Number of Positions/Bay/Row	Pitch	Pitch	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Termination Rows [custom]	Features	Number of Positions [custom]	Number of Positions/Bay/Row [custom]	Number of Rows

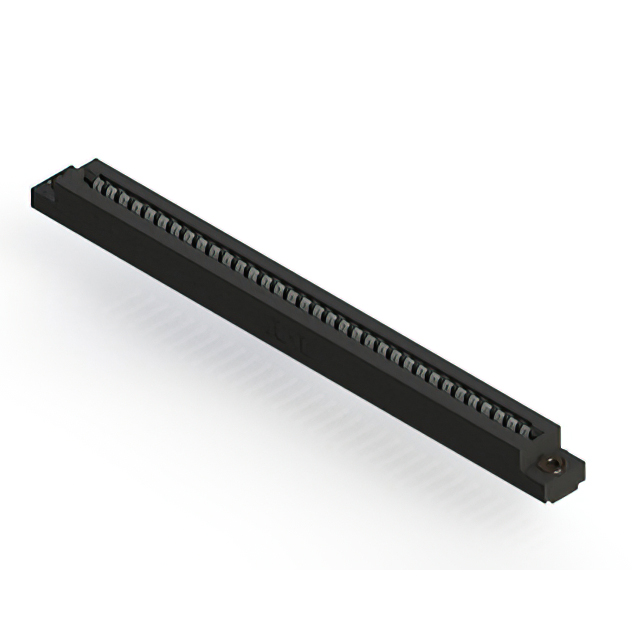

EDAC Inc. 857-034-457-103	Right Angle Through Hole	Black	1	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Female	Tin	Semi Bellows	125 °C	-40 C	Non Specified - Dual Edge	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Solder	68 positions	Copper Alloy	Dual	34	3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)

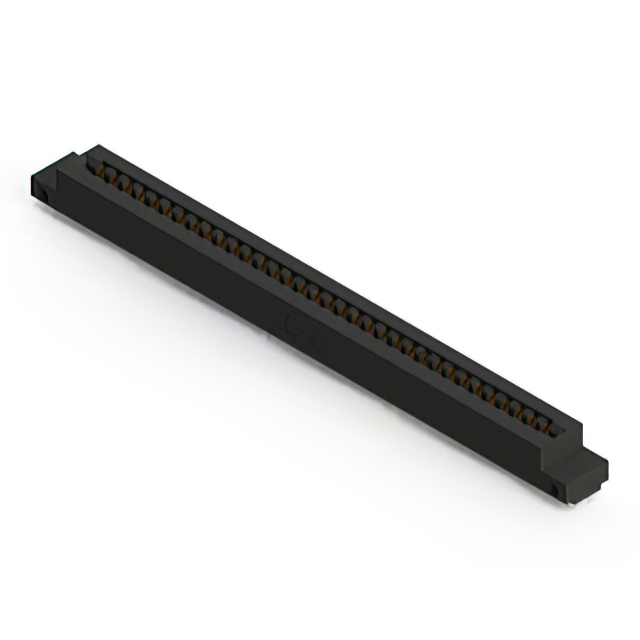

EDAC Inc. 857-034-553-112	Right Angle Through Hole	Black	1	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Female	Gold	Semi Bellows	125 °C	-40 C	Non Specified - Dual Edge	0.128 "	Side Mount Opening Unthreaded	3.25 mm	Solder	68 positions	Copper Alloy	Dual	34	3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin
EDAC Inc. 857-034-401-102	Through Hole	Black	1	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Female	Tin	Semi Bellows	125 °C	-40 C	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Solder Eyelet(s)	68 positions	Copper Alloy	Dual	34	3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)
EDAC Inc. 857-034-556-208	Board Edge Straddle Mount	Black		0.07 in 1.78 mm	0.054 in 1.37 mm	2	Female	Gold	Semi Bellows	125 °C	-40 C	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Solder		Copper Alloy	Dual		3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Card Extender	34	17
EDAC Inc. 857-034-556-201	Board Edge Straddle Mount	Black		0.07 in 1.78 mm	0.054 in 1.37 mm	2	Female	Gold	Semi Bellows	125 °C	-40 C	Non Specified - Dual Edge				Solder		Copper Alloy	Dual		3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2	Card Extender	34	17
EDAC Inc. 857-034-547-112	Through Hole	Black	1	0.07 in 1.78 mm	0.054 in 1.37 mm		Female	Gold	Semi Bellows	125 °C	-40 C	Non Specified - Single Edge	0.128 "	Side Mount Opening Unthreaded	3.25 mm	Wire Wrap		Copper Alloy	Single	34	3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin			34		1
EDAC Inc. 857-034-460-202	Board Edge Straddle Mount	Black		0.07 in 1.78 mm	0.054 in 1.37 mm	2	Female	Tin	Semi Bellows	125 °C	-40 C	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Solder		Copper Alloy	Dual		3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)			2	Card Extender	34	17
EDAC Inc. 857-034-547-108	Through Hole	Black	1	0.07 in 1.78 mm	0.054 in 1.37 mm		Female	Gold	Semi Bellows	125 °C	-40 C	Non Specified - Single Edge		4-40 Flush Mount Threaded Insert Top Opening		Wire Wrap		Copper Alloy	Single	34	3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin			34		1

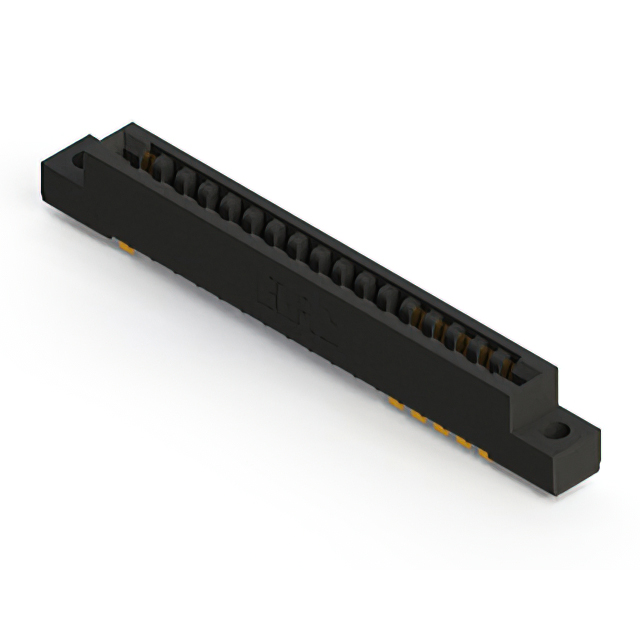

EDAC Inc. 857-034-500-202	Through Hole	Black		0.07 in 1.78 mm	0.054 in 1.37 mm	2	Female	Gold	Semi Bellows	125 °C	-40 C	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Solder Eyelet(s)		Copper Alloy	Dual		3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	2		34	17

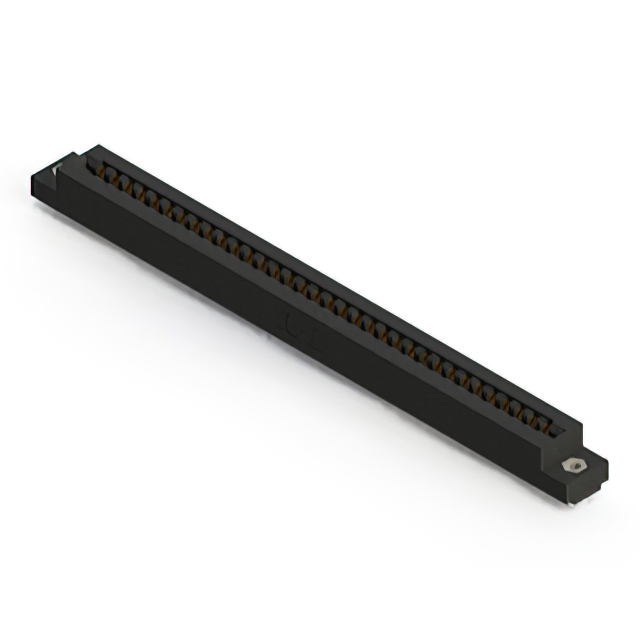

EDAC Inc. 857-034-553-108	Right Angle Through Hole	Black	1	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Female	Gold	Semi Bellows	125 °C	-40 C	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Solder	68 positions	Copper Alloy	Dual	34	3.96 mm	0.156 in	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin
