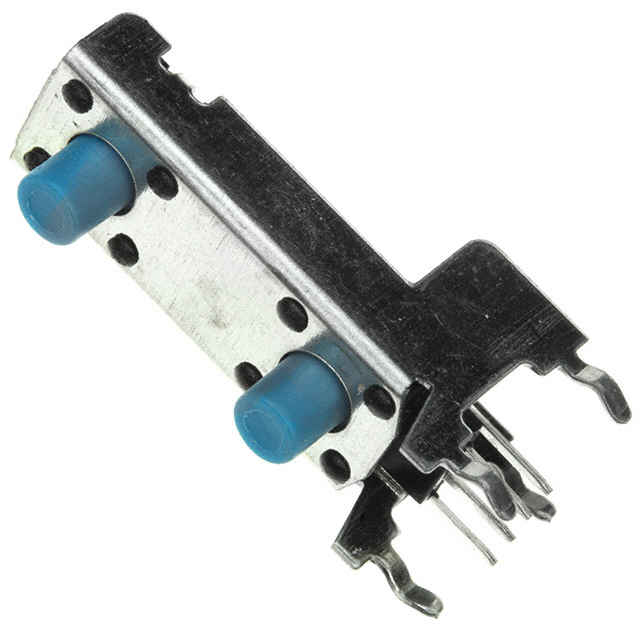

TL53B Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACT SPSTX2 0.05A 12V
| Part | Switch Travel | Actuator Material | Mechanical Life | Actuator Length, Right Angle [x] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force | Contact Rating @ Voltage | Actuator Orientation | Circuit | Mounting Type | Outline [y] | Outline [x] | Switch Function | Actuator Type | Illumination | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.25 mm | Acetal | 100000 Cycles | 5.85 mm | -20 ░C | 70 °C | 160 gf | 0.05 A 12 VDC | Side Actuated | SPST x 2 | Right Angle Through Hole | 10.5 mm | 8.4 mm | Off-Mom | Dual | Non-Illuminated | PC Pin |
