NPPN031 Series

Catalog

CONN HDR 3POS 0.079 GOLD PCB

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Contact Type	Termination	Current Rating (Amps)	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Material Flammability Rating	Contact Finish - Post	Number of Rows	Insulation Height [z]	Insulation Height [z]	Voltage Rating

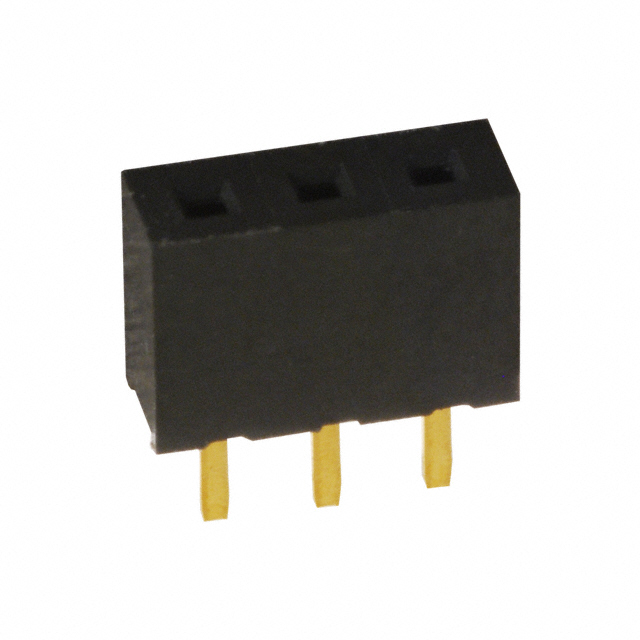

Sullins Connector Solutions NPPN031BFCN-RC	Square	Phosphor Bronze	Flash	Nylon 6T Polyamide (PA6T)	Female Socket	Solder	2 A	Push-Pull	0.079 "	2 mm	4.4 mm	0.173 in	2.4 mm	0.094 in	All	Flash	Header	Black	-40 C	105 ░C	Gold	Through Hole	UL94 V-0	Gold	1

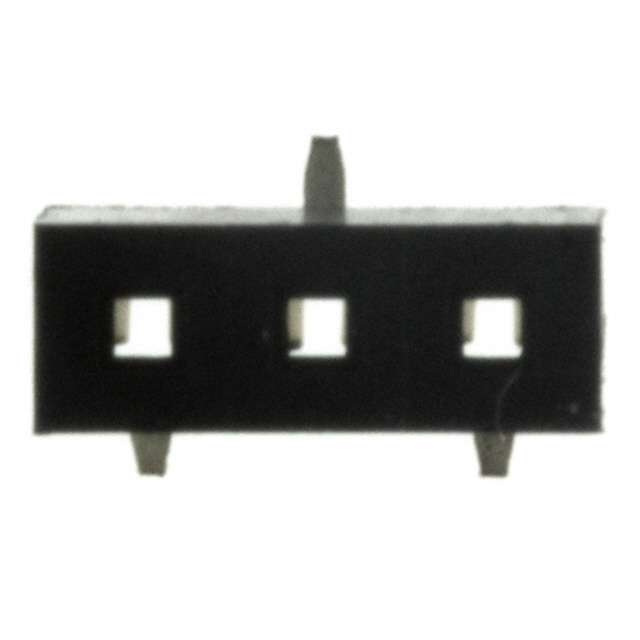

Sullins Connector Solutions NPPN031BFLD-RC	Square	Phosphor Bronze	Flash	Nylon 6T Polyamide (PA6T)	Female Socket	Solder	2 A	Push-Pull	0.079 "	2 mm					All	Flash	Header	Black	-40 C	105 ░C	Gold	Surface Mount	UL94 V-0	Gold	1	0.181 in	4.6 mm	150 VDC

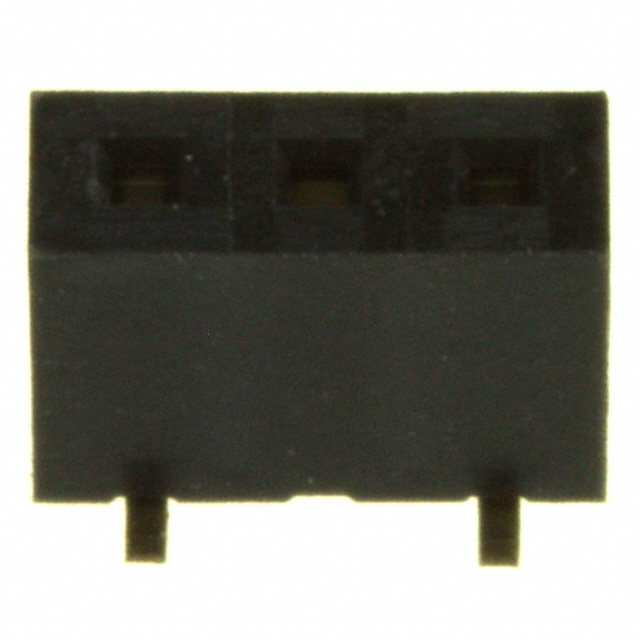

Sullins Connector Solutions NPPN031BFLC-RC	Square	Phosphor Bronze	Flash	Nylon 6T Polyamide (PA6T)	Female Socket	Solder	2 A	Push-Pull	0.079 "	2 mm					All	Flash	Header	Black	-40 C	105 ░C	Gold	Surface Mount	UL94 V-0	Gold	1	0.181 in	4.6 mm	150 VDC
