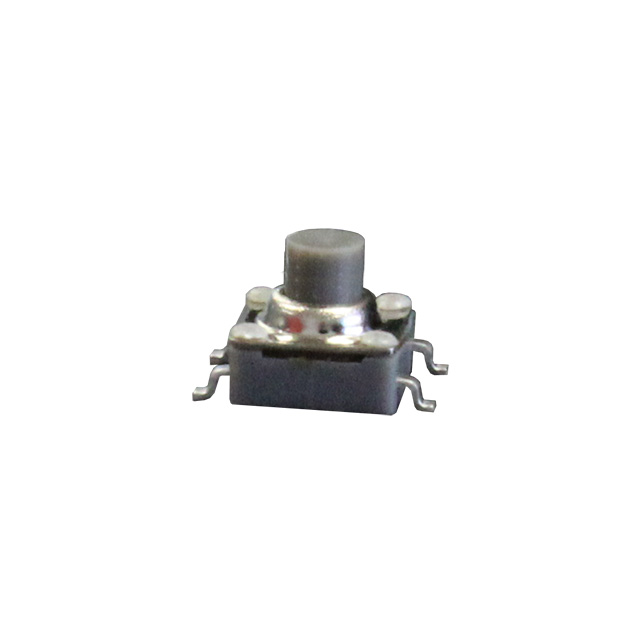

STR7.3 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Switch Travel | Actuator Material | Actuator Height off PCB, Vertical [z] | Switch Function | Actuator Type | Ingress Protection | Circuit | Illumination | Contact Rating @ Voltage | Outline [x] | Outline [y] | Actuator Orientation | Mounting Type | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.28 mm | Polyamide (PA6T) Nylon 6T | 7.3 mm | Off-Mom | Standard | IP67 - Dust Tight Waterproof | SPST-NO | Non-Illuminated | 0.05 A 48 VDC | 6.2 mm | 6.2 mm | Top Actuated | Surface Mount | 160 gf | 85 °C | -40 C | Gull Wing |
CIT Relay and Switch | 0.28 mm | Polyamide (PA6T) Nylon 6T | 7.3 mm | Off-Mom | Standard | IP67 - Dust Tight Waterproof | SPST-NO | Non-Illuminated | 0.05 A 48 VDC | 6.2 mm | 6.2 mm | Top Actuated | Surface Mount | 260 gf | 85 °C | -40 C | Gull Wing |
