HLMP47 Series

Catalog

LED CBI 5MM GRN DIFF RA

Part	Wavelength - Peak	Mounting Type	Configuration	Millicandela Rating	Voltage Rating	Lens Size	Lens Size	Current	Lens Style	Viewing Angle	Lens Type	Color	Height (Max) [Max]	Supplier Device Package	Lens Transparency	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Color	Package / Case	Height (Max) [Max] [z]
ON Semiconductor HLMP47409MP6	565 nm	Through Hole Right Angle	Single	2.3 mcd	1.9 V	T-1 3/4	5 mm	2 mA	Round with Domed Top	50 °	Diffused Tinted	Green
ON Semiconductor HLMP4700L	635 nm	Through Hole	Standard	2 mcd		T-1 3/4	5 mm		Round with Domed Top	35 °		Red	8.89 mm	T-1 3/4	Diffused	2 mA	1.8 V	Red	Radial
ON Semiconductor HLMP47199MP5	565 nm	Through Hole	Single	2.1 mcd	1.9 V	T-1 3/4	5 mm	2 mA	Round with Domed Top	50 °	Diffused Tinted	Yellow
ON Semiconductor HLMP47409MP8A	565 nm	Through Hole Right Angle	4 Wide	2.3 mcd	1.9 V	T-1 3/4	5 mm	2 mA	Round with Domed Top	50 °	Diffused Tinted	Green (x 4)
ON Semiconductor HLMP47009MP8A	635 nm	Through Hole Right Angle	4 Wide	2 mcd	1.8 V	T-1 3/4	5 mm	2 mA	Round with Domed Top	50 °	Diffused Tinted	Red (x 4)
ON Semiconductor HLMP47009MP7		Through Hole Right Angle	Single	2 mcd	1.8 V	T-1 3/4	5 mm	2 mA	Round with Domed Top	45 °	Diffused Tinted	Red
ON Semiconductor HLMP47199MP8A	565 nm	Through Hole Right Angle	4 Wide	2.1 mcd	1.9 V	T-1 3/4	5 mm	2 mA	Round with Domed Top	50 °	Diffused Tinted	Yellow (x 4)

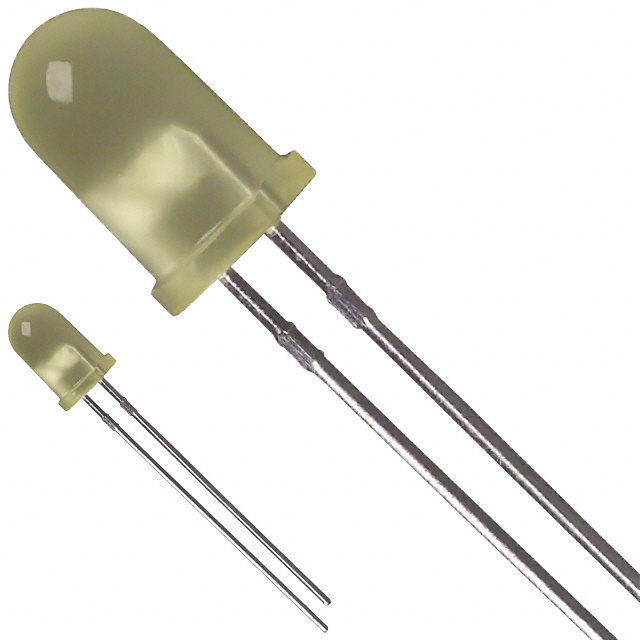

ON Semiconductor HLMP4719	585 nm	Through Hole	Standard	2 mcd		T-1 3/4	5 mm		Round with Domed Top	35 °		Yellow		T-1 3/4	Diffused	2 mA	1.9 V	Yellow	Radial	6.3 mm
ON Semiconductor HLMP47009MP5		Through Hole	Single	2 mcd	1.8 V	T-1 3/4	5 mm	2 mA	Round with Domed Top	45 °	Diffused Tinted	Red
ON Semiconductor HLMP47409MP8	565 nm	Through Hole	4 Wide	2.3 mcd	1.9 V	T-1 3/4	5 mm	2 mA	Round with Domed Top	50 °	Diffused Tinted	Green (x 4)
