9619 Series
Manufacturer: Belden Inc.
Beta
⌘K

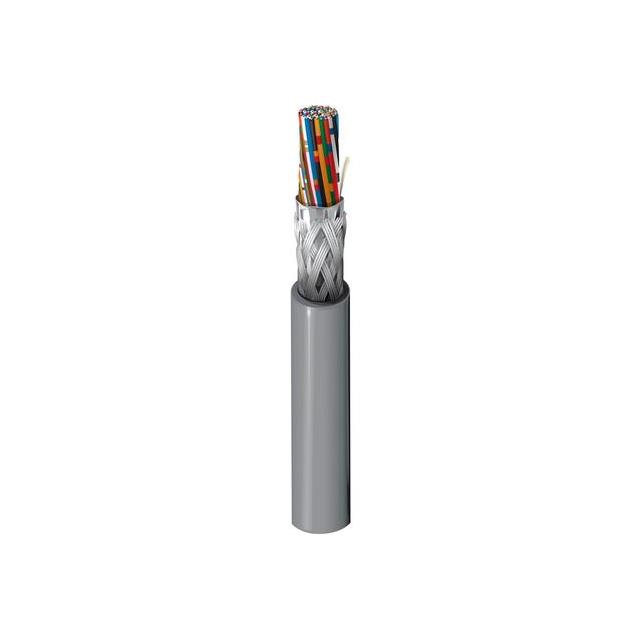

CABLE 50COND 24AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Voltage | Jacket (Insulation) Material | Conductor Material | Length | Length | Ratings | Number of Conductors | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Chrome | 1.143 mm | 0.045 in | 12.32 mm | 0.485 in | Braid Foil | Computer | 7 | 32 AWG | 24 AWG | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | Copper Tinned | 152.4 m | 500 ft | UL Style 2464 | 50 | Multi-Conductor | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Chrome | 1.143 mm | 0.045 in | 12.32 mm | 0.485 in | Braid Foil | Computer | 7 | 32 AWG | 24 AWG | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | Copper Tinned | UL Style 2464 | 50 | Multi-Conductor | 100 ft | 30.5 m | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Chrome | 1.143 mm | 0.045 in | 12.32 mm | 0.485 in | Braid Foil | Computer | 7 | 32 AWG | 24 AWG | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | Copper Tinned | 304.8 m | 1000 ft | UL Style 2464 | 50 | Multi-Conductor |
