202D142 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ42 BLACK

Part	Material	Total Length Recovered	Total Length Recovered	Type	Shell Size - Insert	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Color	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Recovered Length	Small Recovered Length	Shelf Life Start	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Shelf Life	Large Recovered Length	Large Recovered Length	Total Length Recovered

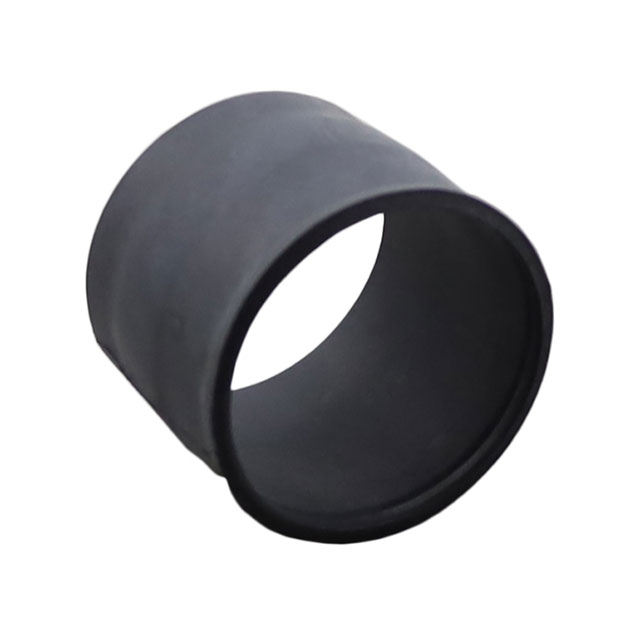

TE Connectivity Aerospace, Defense and Marine 202D142-3-35-0	Polyolefin (PO) Semi-Rigid	40.64 mm	1.6 in	Boot	42	30.99 mm	1.22 in	Black	7.11 mm	0.28 "	0.7 in	17.78 mm	0.46 in	11.68 mm	Date of Manufacture	1.22 in	30.99 mm	60 Months
TE Connectivity Aerospace, Defense and Marine 202D142-12-60-0	Fluoroelastomer (FKM) Flexible	2.63 in		Boot	42	16 mm	0.63 in	Black	7.19 mm	0.283 "	0.701 in	17.81 mm				1.22 in	30.99 mm		1.39 in	35.31 mm	66.8 mm
TE Connectivity Aerospace, Defense and Marine 202D142-25/42-0	Elastomer Fluid Resistant	2.63 in		Boot	42	30.99 mm	1.22 in	Black	7.11 mm	0.28 "	0.7 in	17.78 mm				1.22 in	30.99 mm		1.39 in	35.31 mm	66.8 mm
TE Connectivity Aerospace, Defense and Marine 202D142-3/86-0	Polyolefin (PO) Semi-Rigid	2.63 in		Boot	42	30.99 mm	1.22 in	Black	7.19 mm	0.283 "	0.701 in	17.81 mm	0.965 in	24.51 mm		1.22 in	30.99 mm		1.39 in	35.31 mm	66.8 mm

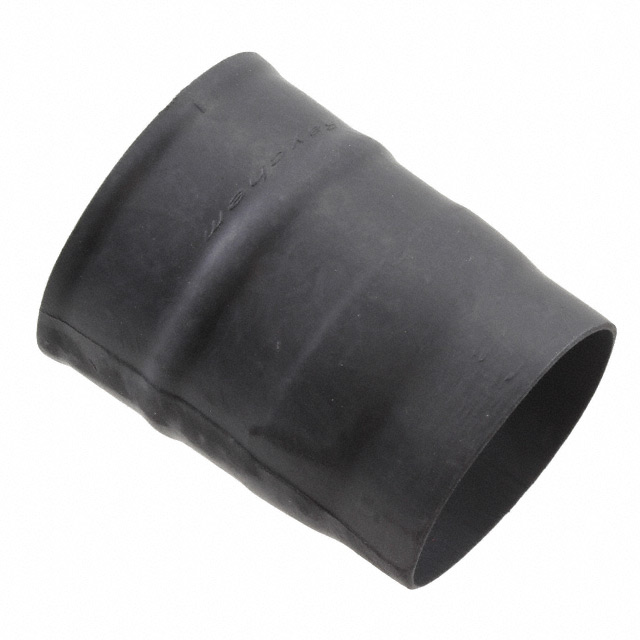

TE Connectivity Aerospace, Defense and Marine 202D142-4-0	Polyolefin (PO) Flexible	2.63 in		Boot	42	30.99 mm	1.22 in	Black	7.19 mm	0.283 "	0.701 in	17.81 mm	0.965 in	24.51 mm		1.22 in	30.99 mm		1.39 in	35.31 mm	66.8 mm
TE Connectivity Aerospace, Defense and Marine 202D142-100-0	Polyolefin (PO) Semi-Flexible Halogen Free	2.63 in		Boot	42	16 mm	0.63 in	Black	7.11 mm	0.28 "	0.7 in	17.78 mm				1.22 in	30.99 mm		1.39 in	35.31 mm	66.8 mm
TE Connectivity Aerospace, Defense and Marine 202D142-12-20-0	Fluoroelastomer (FKM) Flexible	46.51 mm	1.831 in	Boot	42	27.43 mm	1.08 in	Black	7.11 mm	0.28 "	0.7 in	17.78 mm				1.22 in	30.99 mm

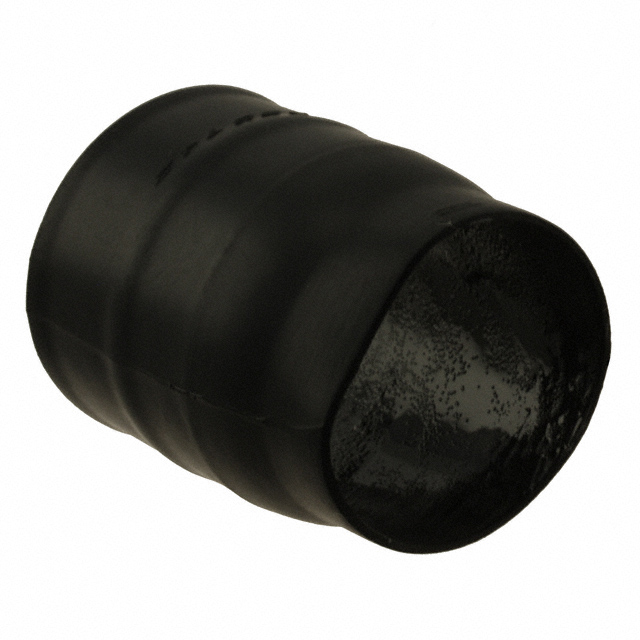

TE Connectivity Aerospace, Defense and Marine 202D142-4/42-0	Polyolefin (PO) Flexible	2.63 in		Boot	42	30.99 mm	1.22 in	Black	7.19 mm	0.283 "	0.701 in	17.81 mm	0.965 in	24.51 mm		1.22 in	30.99 mm		1.39 in	35.31 mm	66.8 mm
TE Connectivity Aerospace, Defense and Marine 202D142-3/42-0	Polyolefin (PO) Semi-Rigid	2.63 in		Boot	42	30.99 mm	1.22 in	Black	7.19 mm	0.283 "	0.701 in	17.81 mm	0.965 in	24.51 mm		1.22 in	30.99 mm		1.39 in	35.31 mm	66.8 mm
