GPRM-S1 Series
Manufacturer: c3controls
Beta
⌘K

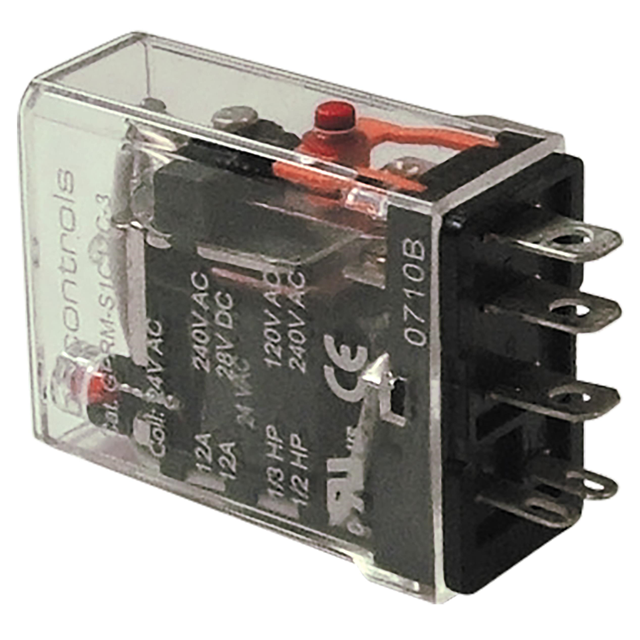

RELAY GEN PURPOSE SPDT 12A 24V
| Part | Coil Resistance | Switching Voltage | Coil Type | Contact Rating (Current) | Coil Current | Contact Form | Must Operate Voltage | Mounting Type | Contact Material | Operate Time | Must Release Voltage | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Release Time | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | 750 Ohms | 24 VDC 240 VAC | Non Latching | 12 A | 32 mA | SPDT (1 Form C) | 19.2 VDC | Socketable | Silver Nickel (AgNi) | 20 ms | 2.4 VDC | General Purpose | -30 ░C | 70 °C | Plug In | 20 ms | 24 VDC |
