896-072 Series
Manufacturer: EDAC Inc.
Beta
⌘K

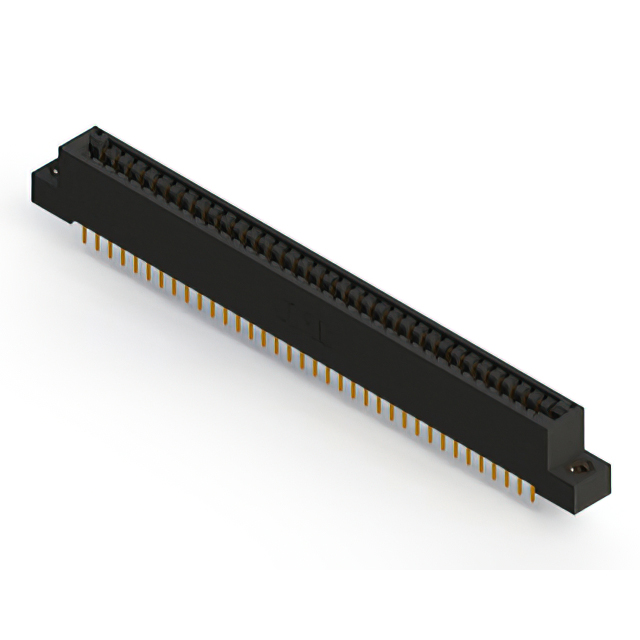

CONN EDGE DUAL FMALE 72POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows [custom] | Read Out | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Card Type | Color | Mounting Type | Contact Type | Termination | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Gender | Number of Positions/Bay/Row | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Cantilever | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | Card Extender |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 4-40 Threaded Insert Top Mount Opening | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Cantilever | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | Card Extender | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 0.156 " | 3.96 mm | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Cantilever | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | Card Extender | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Through Hole | Cantilever | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Through Hole | Cantilever | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Through Hole | Cantilever | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Through Hole | Cantilever | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Through Hole | Cantilever | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 0.128 " | 3.25 mm | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Through Hole | Cantilever | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 2 | Dual | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Non Specified - Dual Edge | Black | Through Hole | Cantilever | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 72 | Female | 36 |
