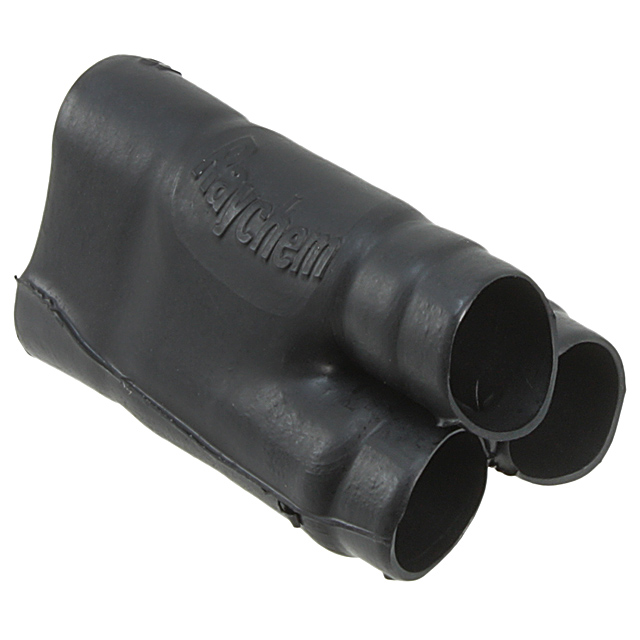

462A011 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT BRKOUT 3:1 SZ11

Part	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Material	Color	Total Length Recovered [x]	Total Length Recovered [x]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Type	Shell Size - Insert	Large Recovered Length	Large Recovered Length	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Recovered Length	Small Recovered Length	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Total Length Recovered	Total Length Recovered
TE Connectivity Aerospace, Defense and Marine 462A011-4/42-0	0.142 "	3.61 mm	Polyolefin (PO) Flexible	Black	46.2 mm	1.819 in	6.6 mm	0.26 in	Boot Transition - Breakout 3:1	11	0.819 in	20.8 mm	0.52 in	13.21 mm	1 in	25.4 mm	0.26 in	6.6 mm
TE Connectivity Aerospace, Defense and Marine 462A011-3-00-0
TE Connectivity Aerospace, Defense and Marine 462A011-4/86-0	0.142 "	3.61 mm	Polyolefin (PO) Flexible	Black	46.2 mm	1.819 in	6.6 mm	0.26 in	Boot Transition - Breakout 3:1	11	0.819 in	20.8 mm	0.52 in	13.21 mm	1 in	25.4 mm	0.26 in	6.6 mm
TE Connectivity Aerospace, Defense and Marine 462A011-25/86-0	0.142 "	3.61 mm	Elastomer Semi-Rigid	Black	46.2 mm	1.819 in	6.6 mm	0.26 in	Boot Transition - Breakout 3:1	11	0.819 in	20.8 mm	0.52 in	13.21 mm	1 in	25.4 mm	0.26 in	6.6 mm

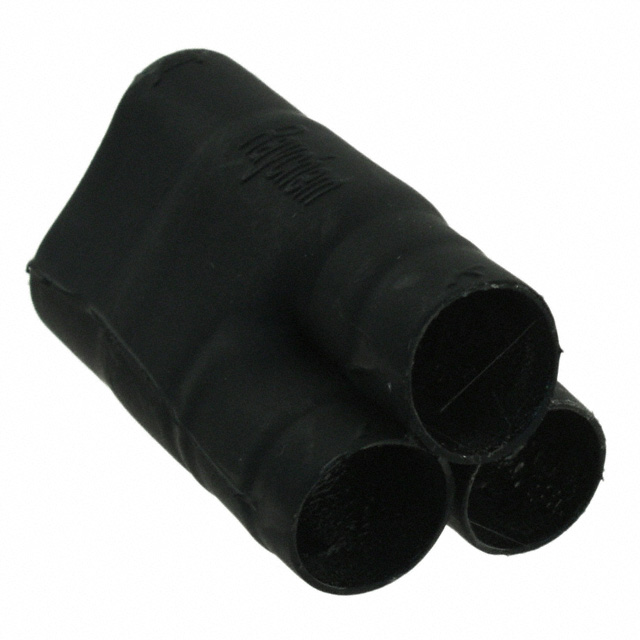

TE Connectivity Aerospace, Defense and Marine 462A011-3/42-0	0.142 "	3.61 mm	Polyolefin (PO) Semi-Rigid	Black	46.2 mm	1.819 in	6.6 mm	0.26 in	Boot Transition - Breakout 3:1	11	0.819 in	20.8 mm	0.52 in	13.21 mm	1 in	25.4 mm	0.26 in	6.6 mm
TE Connectivity Aerospace, Defense and Marine 462A011-4-0-CS5100	0.14 "	3.56 mm	Polyolefin (PO) Flexible	Black			6.6 mm	0.26 in	Boot Transition - Breakout 3:1	11	0.82 in	20.83 mm	0.52 in	13.21 mm	1 in	25.4 mm	0.26 in	6.6 mm	1.82 in	46.23 mm
TE Connectivity Aerospace, Defense and Marine 462A011-100/86-0	0.14 "	3.56 mm	Polyolefin (PO) Semi-Flexible Halogen Free	Black			6.6 mm	0.26 in	Boot Transition - Breakout 3:1	11	0.82 in	20.83 mm	0.52 in	13.21 mm	1 in	25.4 mm	0.26 in	6.6 mm	1.82 in	46.23 mm
TE Connectivity Aerospace, Defense and Marine 462A011-100-G09/86-0	0.14 "	3.56 mm	Polyolefin (PO) Semi-Flexible Halogen Free	Black			9.91 mm	0.39 in	Boot Transition - Breakout 3:1	11	0.83 in	21.08 mm	0.67 in	17.02 mm	0.98 in	24.89 mm	0.26 in	6.6 mm
TE Connectivity Aerospace, Defense and Marine 462A011-25-G05/225-0
TE Connectivity Aerospace, Defense and Marine 462A011-25-0	0.142 "	3.61 mm	Elastomer Semi-Rigid	Black	46.2 mm	1.819 in	6.6 mm	0.26 in	Boot Transition - Breakout 3:1	11	0.819 in	20.8 mm	0.52 in	13.21 mm	1 in	25.4 mm	0.26 in	6.6 mm
