LZ7-A4 Series

Catalog

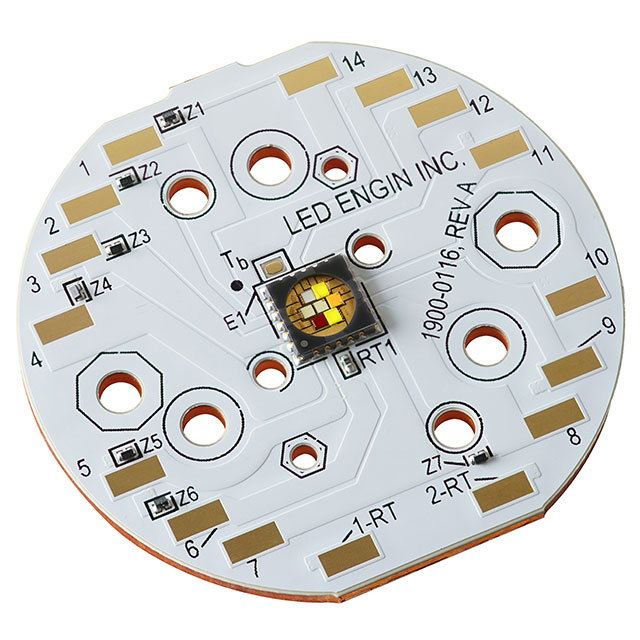

LED MOD LZ7 6-COLOR ROUND

Part	Configuration	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Lens Type	Current - Max	Temperature - Test	Wavelength	Type	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height [z]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Viewing Angle	Color	Size / Dimension [diameter]
ams-OSRAM USA INC. LZ7-A4M2PD-0000	Round	42 lm	620 lm	95 lm	135 lm	180 lm	140 lm	Flat	1 A 1.5 A 2.5 A 2.5 A 3 A 3 A	25 °C	451 nm 500 nm 520 nm 590 nm 623 nm	LED Module	14 lm/W 39 lm/W 41 lm/W 42 lm/W 51 lm/W 102 lm/W	2.3 V 3.05 V 3.3 V 3.45 V 3.55 V 6.1 V	3.04 mm	1 A	1 A	1 A	1 A	1 A	1 A	114 °	Amber Blue Cyan Green Lime Red	47 mm
