LV8907UW Series

Sensorless Three-Phase Brushless DC Motor Controller and Predriver, Automotive

Catalog

Sensorless Three-Phase Brushless DC Motor Controller and Predriver, Automotive

Part	Output Configuration	Qualification	Mounting Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Grade	Motor Type - AC, DC	Technology	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Primary Attributes	Supplied Contents	Type	Utilized IC / Part
ON Semiconductor LV8907UWR2G	Pre-Driver - Half Bridge (3)	AEC-Q100	Surface Mount	Controller - Commutation Direction Management	150 °C	-40 °C	48-LQFP Exposed Pad	Automotive	Brushless DC (BLDC)	NMOS	48-SQFP (7x7)	20 V	5.5 V	SPI

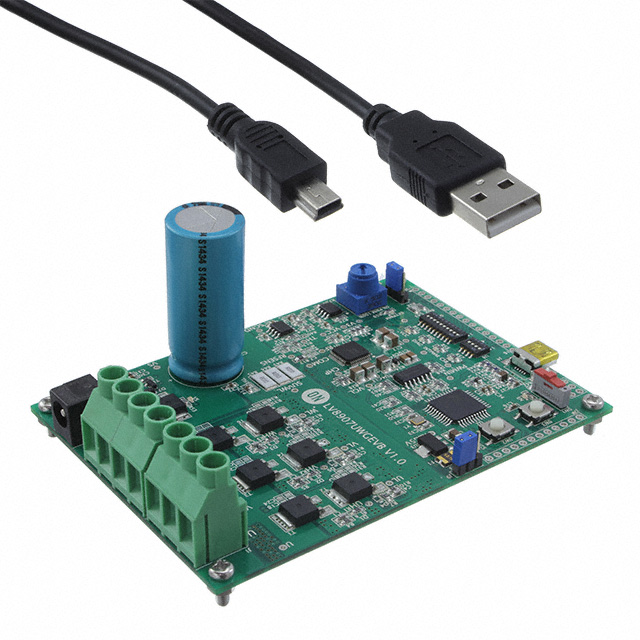

ON Semiconductor LV8907UWGEVK				Motor Controller/Driver											Motors (BLDC)	Board(s)	Power Management	LV8907

Catalog

Sensorless Three-Phase Brushless DC Motor Controller and Predriver, Automotive

Key Features

• Operating junction temperature up to 175°C

• Operating voltage range from 5.5 V to 20 V with tolerance from 4.5 V to 40 V

• Embedded proprietary sensorless commutation control

• Built-in LIN transceiver and Watchdog timer

• SPI interface for real-time parameterization and diagnostic

• Various system protection features including:♦ Shoot through protection using configurable dead time♦ Drain-source short detection♦ Cycle-by-cycle current limit and overcurrent shutdown♦ Overvoltage- and undervoltage shutdown♦ Overtemperature warning and -shutdown♦ Input PWM fault detection

• Configurable speed setting and PI control coefficients

• Supports both open-loop and closed-loop speed control

• Integrated 5 V/3.3 V regulator output for external circuit

• Integrated predrivers for driving six N-MOSFETs

• Two-stage charge pump for continuous 100% duty cycle operation

• AEC−Q100 Qualified and PPAP Capable

Description

The LV8907 is a high performance, sensorless three-phase BLDC motor controller with predrivers for automotive applications. An integrated two-stage charge pump provides gate current for a wide range of ultra low RDS(ON) NFETs. The device offers a rich set of system protection and diagnostic functions such as overcurrent, overvoltage, short-circuit, undervoltage, overtemperature and many more. It supports open-loop as well as closed-loop speed control with user configurable startup, speed setting and proportional/integral (PI) control coefficients, making it suitable for a wide range of motor and load combinations. With a built-in linear regulator for powering external circuits, a watchdog timer, and a Local Interconnect Network (LIN) transceiver, the LV8907 offers a very small system solution. The LV8907 stores system parameters in embedded one-time programmable (OTP) non-volatile memory in addition to RAM system memory. An SPI interface is provided for parameter setting and monitoring the system status. With the operating junction temperature tolerance up to 175°C and electrically LIN compatible control signals (PWM and Enable), the LV8907 is an ideal solution for stand-alone BLDC motor control systems.
