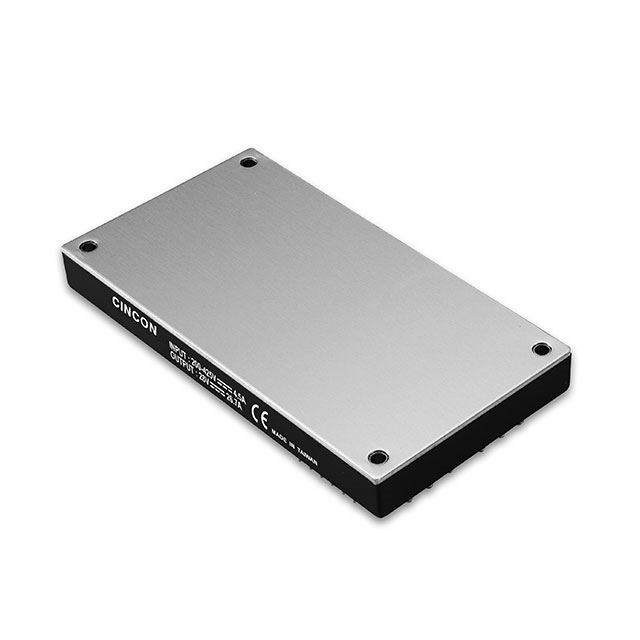

CFB750 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 12V 750W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Approval Agency	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Features	Type	Supplier Device Package	Standard Number	Applications	Package / Case	Efficiency	Mounting Type	Voltage - Output 1 [custom]
Cincon Electronics Co. LTD CFB750-300S12	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Active High Enable	-40 °C	85 °C	1	200 V	62.5 A	425 V	CE	750 W	12 V	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Full Brick	60950-1	ITE (Commercial)	Full Brick	88 %	Through Hole

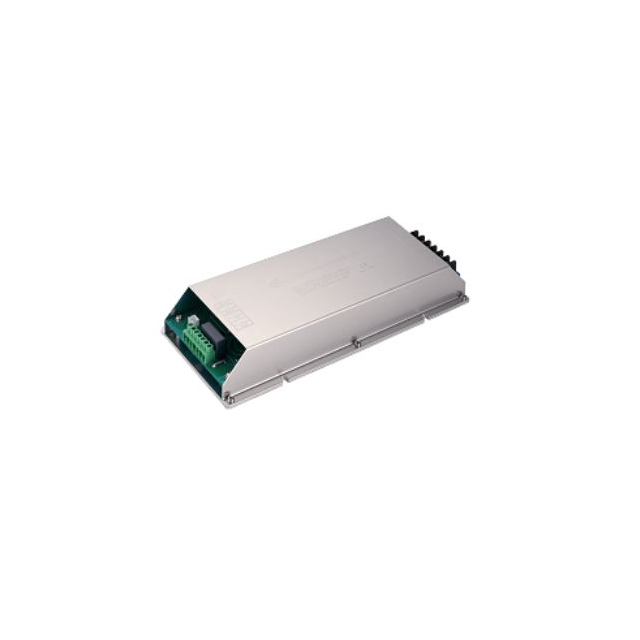

Cincon Electronics Co. LTD CFB750-300S28-CMFD	4.33 "	9.45 "	41.9 mm	1.65 "	110 mm	240 mm		-40 °C	80 ¯C	1	200 V	26.7 A	425 V	CE	748 W	28 V	3000 V		Enclosed		62368-1	ITE (Commercial)		89 %	Chassis Mount
Cincon Electronics Co. LTD CFB750-300S28N	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Active Low Enable	-40 °C	85 °C	1	200 V	26.7 A	425 V	CE	748 W	28 V	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Full Brick	60950-1	ITE (Commercial)	Full Brick	90 %	Through Hole
Cincon Electronics Co. LTD CFB750-300S36N	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Active Low Enable	-40 °C	85 °C	1	200 V	20.8 A	425 V	CE	749 W		3000 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Full Brick	60950-1	ITE (Commercial)	Full Brick	90 %	Through Hole	36 V
Cincon Electronics Co. LTD CFB750-300S48-CMFD	4.33 "	9.45 "	41.9 mm	1.65 "	110 mm	240 mm		-40 °C	80 ¯C	1	200 V	15.6 A	425 V	CE	749 W	48 V	3000 V		Enclosed		62368-1	ITE (Commercial)		90 %	Chassis Mount
Cincon Electronics Co. LTD CFB750-300S12N	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Active Low Enable	-40 °C	85 °C	1	200 V	62.5 A	425 V	CE	750 W	12 V	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Full Brick	60950-1	ITE (Commercial)	Full Brick	88 %	Through Hole
Cincon Electronics Co. LTD CFB750-300S28	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Active High Enable	-40 °C	85 °C	1	200 V	26.7 A	425 V	CE	748 W	28 V	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Full Brick	60950-1	ITE (Commercial)	Full Brick	90 %	Through Hole
Cincon Electronics Co. LTD CFB750-300S24	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Active High Enable	-40 °C	85 °C	1	200 V	31.2 A	425 V	CE	749 W	24 V	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Full Brick	60950-1	ITE (Commercial)	Full Brick	90 %	Through Hole
Cincon Electronics Co. LTD CFB750-300S48	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Active High Enable	-40 °C	85 °C	1	200 V	15.6 A	425 V	CE	749 W	48 V	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Full Brick	60950-1	ITE (Commercial)	Full Brick	90 %	Through Hole
Cincon Electronics Co. LTD CFB750-300S24N	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Active Low Enable	-40 °C	85 °C	1	200 V	31.2 A	425 V	CE	749 W	24 V	3000 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Full Brick	60950-1	ITE (Commercial)	Full Brick	90 %	Through Hole
