J1524C Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

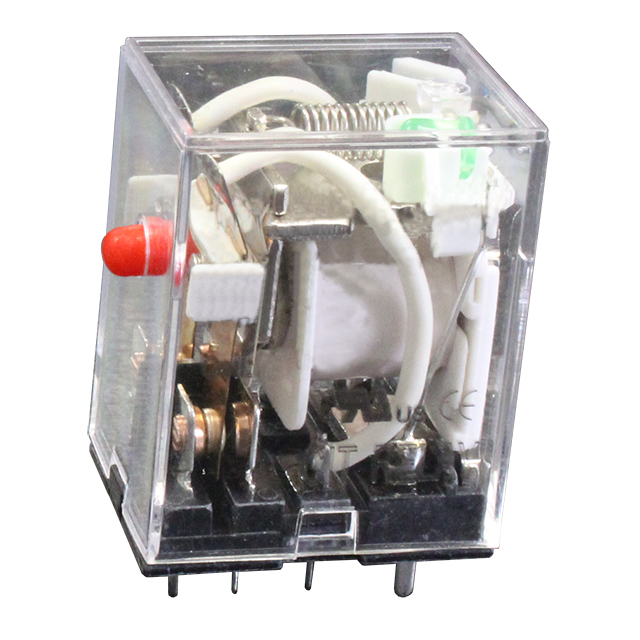

RELAY GEN PURPOSE 4PDT 10A 24V
| Part | Coil Resistance | Mounting Type | Contact Rating (Current) | Coil Current | Switching Voltage [Max] | Coil Type | Approval Agency | Contact Form | Contact Material | Must Release Voltage | Operate Time | Relay Type | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Features | Termination Style | Coil Voltage | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 640 Ohms | Socketable | 10 A | 0.0375 A | 300 VAC | Non Latching | cURus TUV | 4PDT (4 Form C) | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | 25 ms | General Purpose | 18 VDC | 85 °C | -40 C | 25 ms | Lighted Indicator Test Button | Plug In | 24 VDC | 3000 VA |
 CIT Relay and Switch | 4.55 kOhms | Chassis Mount | 10 A | 26.4 mA | 300 VAC | Non Latching | cURus TUV | 4PDT (4 Form C) | Silver Cadmium Oxide (AgCdO) | 36 VAC | 25 ms | General Purpose | 96 VAC | 85 °C | -40 C | 25 ms | Plug In | 120 VAC | 3000 VA | |
CIT Relay and Switch | 640 Ohms | Chassis Mount | 10 A | 0.0375 A | 300 VAC | Non Latching | cURus TUV | 4PDT (4 Form C) | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | 25 ms | General Purpose | 18 VDC | 85 °C | -40 C | 25 ms | Plug In | 24 VDC | 3000 VA | |
 CIT Relay and Switch | 11000 Ohms | Socketable | 10 A | 10 mA | 300 VAC | Non Latching | cURus TUV | 4PDT (4 Form C) | Silver Cadmium Oxide (AgCdO) | 11 VDC | 25 ms | General Purpose | 82.5 VDC | 85 °C | -40 C | 25 ms | Lighted Indicator | Plug In | 110 VDC | 3000 VA |
CIT Relay and Switch | 184 Ohms | Chassis Mount | 10 A | 130.4 mA | 300 VAC | Non Latching | cURus TUV | 4PDT (4 Form C) | Silver Cadmium Oxide (AgCdO) | 7.2 VAC | 25 ms | General Purpose | 19.2 VAC | 85 °C | -40 C | 25 ms | Plug In | 24 VAC | 3000 VA | |
CIT Relay and Switch | 3.75 kOhms | Socketable | 10 A | 29.3 mA | 300 VAC | Non Latching | cURus TUV | 4PDT (4 Form C) | Silver Cadmium Oxide (AgCdO) | 33 VAC | 25 ms | General Purpose | 88 VAC/DC | 85 °C | -40 C | 25 ms | Lighted Indicator Test Button | Plug In | 110 VAC/DC | 3000 VA |
 CIT Relay and Switch | 160 Ohms | Through Hole | 10 A | 0.075 A | 300 VAC | Non Latching | cURus TUV | 4PDT (4 Form C) | Silver Cadmium Oxide (AgCdO) | 1.2 VDC | 25 ms | General Purpose | 9 VDC | 85 °C | -40 C | 25 ms | PC Pin | 12 VDC | 3000 VA | |
CIT Relay and Switch | 160 Ohms | Chassis Mount | 10 A | 0.075 A | 300 VAC | Non Latching | cURus TUV | 4PDT (4 Form C) | Silver Cadmium Oxide (AgCdO) | 1.2 VDC | 25 ms | General Purpose | 9 VDC | 85 °C | -40 C | 25 ms | Plug In | 12 VDC | 3000 VA |
