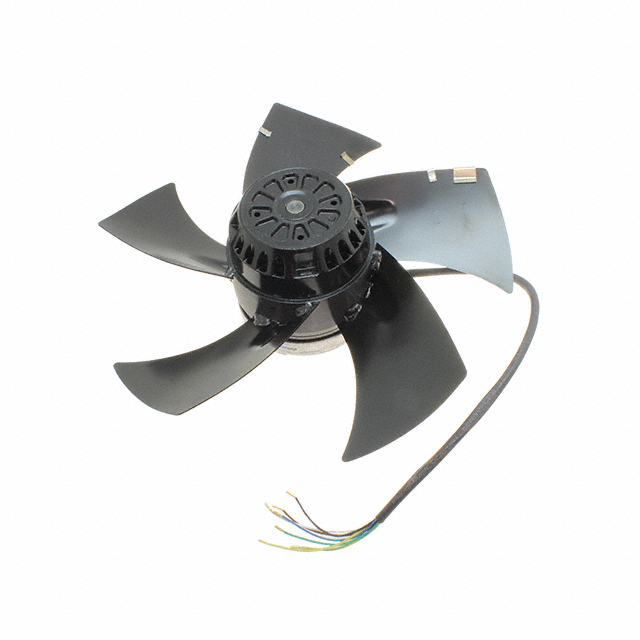

A2D300 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC FAN AXIAL BALL BEARING 230V/400V
| Part | Material - Blade | Current Rating (Amps) | Width [y] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [custom] | Size / Dimension [diameter] | Voltage - Rated [Max] | Voltage - Rated [Min] | Air Flow | Air Flow | Fan Type | Static Pressure | Static Pressure | Bearing Type | Power (Watts) | RPM | Weight [custom] | Weight [custom] | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | 0.84 A | 68 mm | 40 °C | -25 °C | -25 °C | 40 °C | Round | 298 mm | 400 VAC | 230 VAC | 36.4 m³/min | 1300 CFM | 3 Phase Tubeaxial | 125 Pa | 0.502 in H2O | Ball | 300 W | 2750 RPM | 6.8 lbs | 3.1 kg | IP44 | Dual Voltage |
