BZ-2RW Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 5A 125V

Part	Termination Style	Release Force	Circuit	Differential Travel	Differential Travel	Current Rating (Amps)	Mechanical Life	Actuator Type	Voltage Rating - DC	Switch Function	Operating Position	Operating Position	Operating Force	Mounting Type	Voltage Rating - AC	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Operating Force [Min]	Operating Force [Max]	Pretravel	Pretravel	Ingress Protection

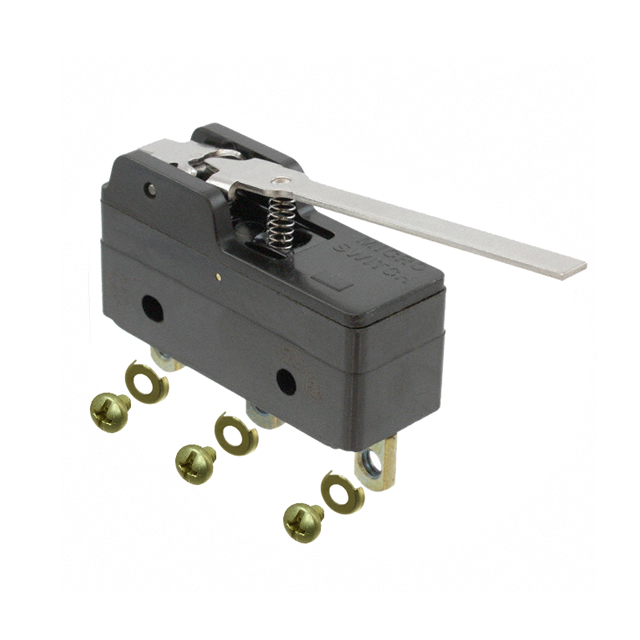

Honeywell Sensing and Productivity Solutions BZ-2RW8244-P4	Screw Terminal	14 gf	SPDT	0.05 in	1.3 mm	5 A 500 mA	20000000 Cycles	Lever Straight	125 VDC	On-Mom	0.75 "	19.1 mm	71 gf	Chassis Mount	125 V	5.6 mm	0.219 in	85 °C	-55 °C

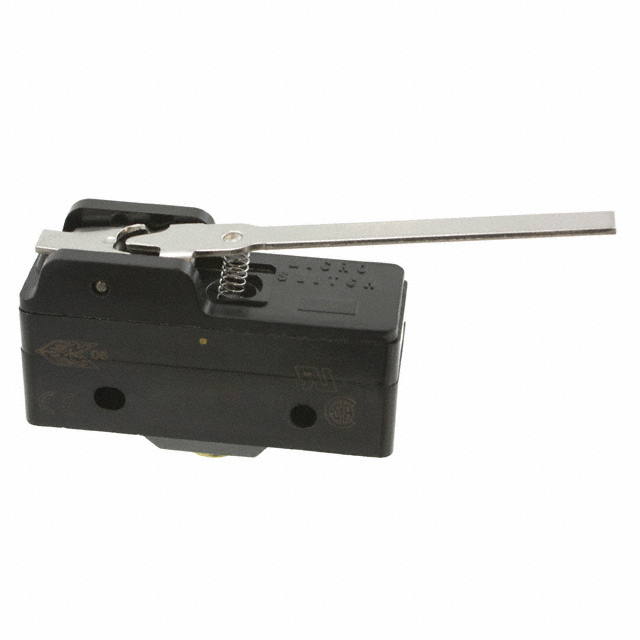

Honeywell Sensing and Productivity Solutions BZ-2RW8072-A2	Screw Terminal	14 gf	SPDT	0.05 in	1.3 mm	1 A	20000000 Cycles	Lever Straight		On-Mom	0.75 "	19.1 mm	71 gf	Chassis Mount	125 V	5.6 mm	0.219 in	85 °C	-55 °C
Honeywell Sensing and Productivity Solutions BZ-2RW80225-A2	Screw Terminal	21 gf	SPDT	0.03 in	0.76 mm	15 A 500 mA	20000000 Cycles	Lever Straight	125 VDC	On-Mom	0.75 "	19.1 mm	127 gf	Chassis Mount	125 V	3.6 mm	0.141 in	85 °C	-55 °C
Honeywell Sensing and Productivity Solutions BZ-2RW881T	Screw Terminal	14 gf	SPDT	0.04 in	1 mm	15 A 500 mA	20000000 Cycles	Lever Straight	125 VDC	On-Mom	0.75 "	19.1 mm	99 gf	Chassis Mount	125 V	0.172 in		85 °C	-55 °C	4.4 mm

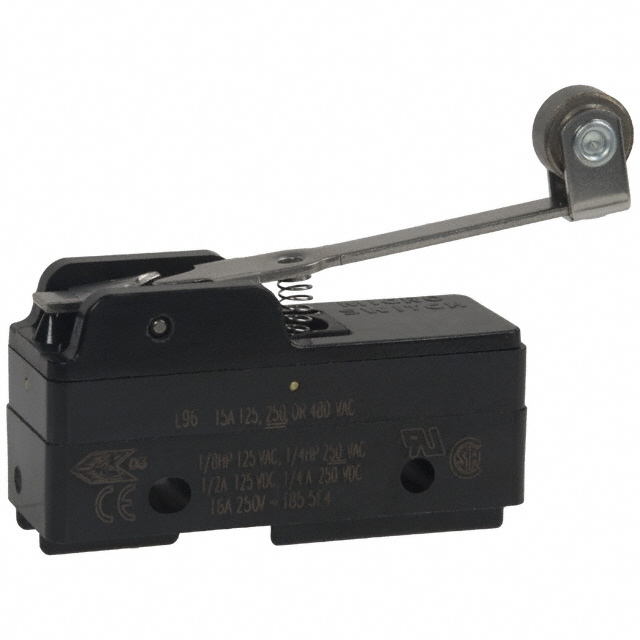

Honeywell Sensing and Productivity Solutions BZ-2RW82	Solder Lug	21 gf	SPDT	0.04 in	1 mm	15 A 500 mA	20000000 Cycles	Lever Roller	125 VDC	On-Mom	1.188 in	30.2 mm	99 gf	Chassis Mount	125 V	3.96 mm	0.156 in	85 °C	-55 °C

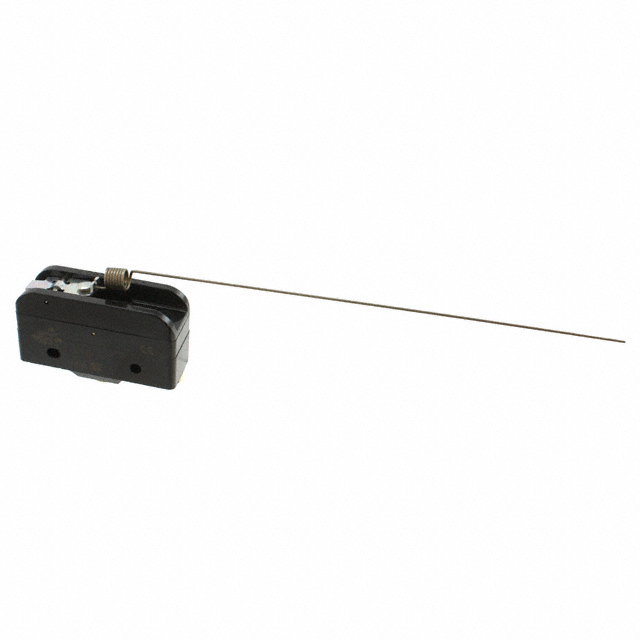

Honeywell Sensing and Productivity Solutions BZ-2RW53-A2	Screw Terminal		SPDT			15 A 500 mA	20000000 Cycles	Lever Straight	125 VDC	On-Mom	1 in	25.4 mm		Chassis Mount	125 V			85 °C	-55 °C

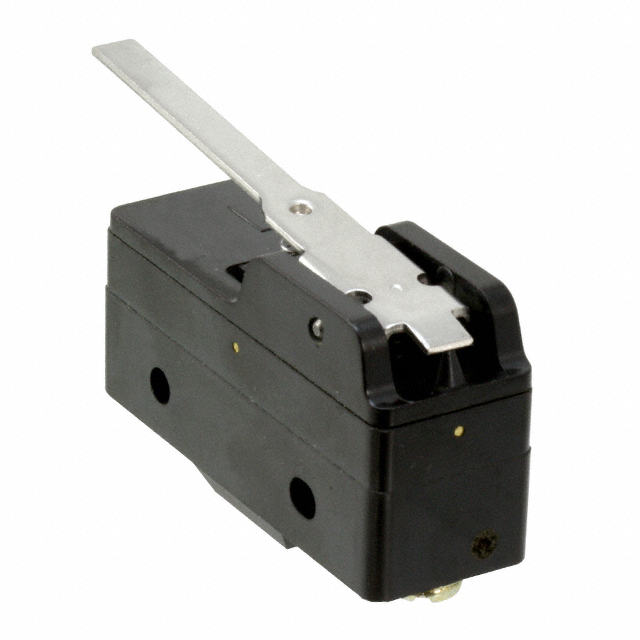

Honeywell Sensing and Productivity Solutions BZ-2RWT04	Screw Terminal	21 gf	SPDT	0.094 in	2.4 mm	15 A 500 mA	20000000 Cycles	Lever Straight	125 VDC	On-Mom	0.75 "	19.1 mm		Chassis Mount	125 V	0.172 in		85 °C	-55 °C	4.4 mm	28 gf	92 gf	7.5 mm	0.296 in
Honeywell Sensing and Productivity Solutions BZ-2RW8253312	Solder Lug		SPDT	0.02 in	0.5 mm	15 A 500 mA	20000000 Cycles	Lever Roller	125 VDC	On-Mom	1.14 in	28.95 mm	141 gf	Chassis Mount	125 V	2.4 mm	0.094 in	85 °C	-55 °C

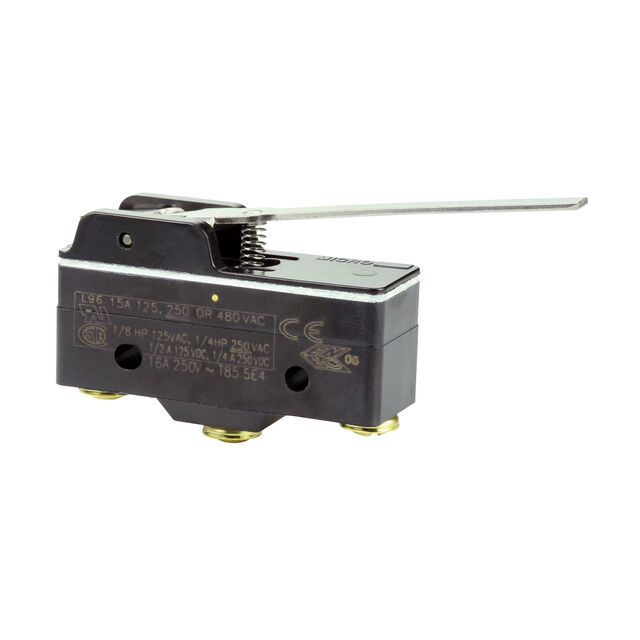

Honeywell Sensing and Productivity Solutions BZ-2RW8055513-A2	Screw Terminal	14 gf	SPDT	0.05 in	1.3 mm	15 A 500 mA	20000000 Cycles	Lever Straight	125 VDC	On-Mom	0.75 "	19.1 mm	71 gf	Chassis Mount	125 V	5.6 mm	0.219 in	85 °C	-55 °C						IP64 - Dust Tight Water Resistant

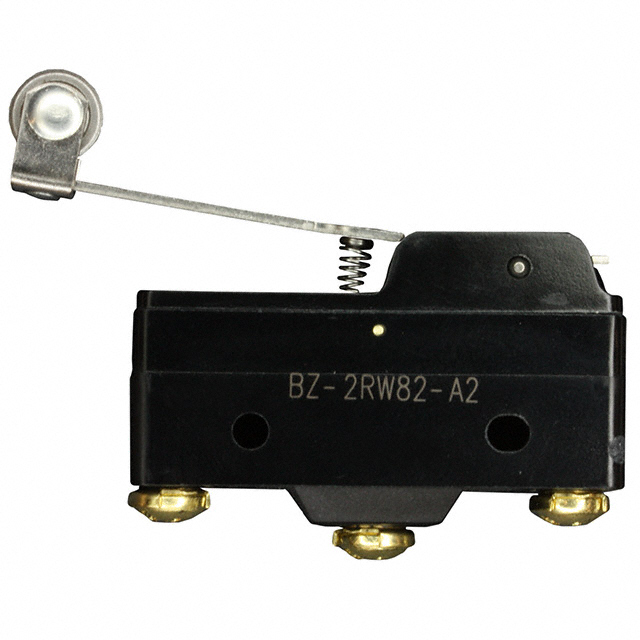

Honeywell Sensing and Productivity Solutions BZ-2RW82-A2	Screw Terminal	21 gf	SPDT	0.04 in	1 mm	15 A 500 mA	20000000 Cycles	Lever Roller	125 VDC	On-Mom	1.188 in	30.2 mm	99 gf	Chassis Mount	125 V	3.96 mm	0.156 in	85 °C	-55 °C
