8216 Series
Manufacturer: Belden Inc.
Beta
⌘K

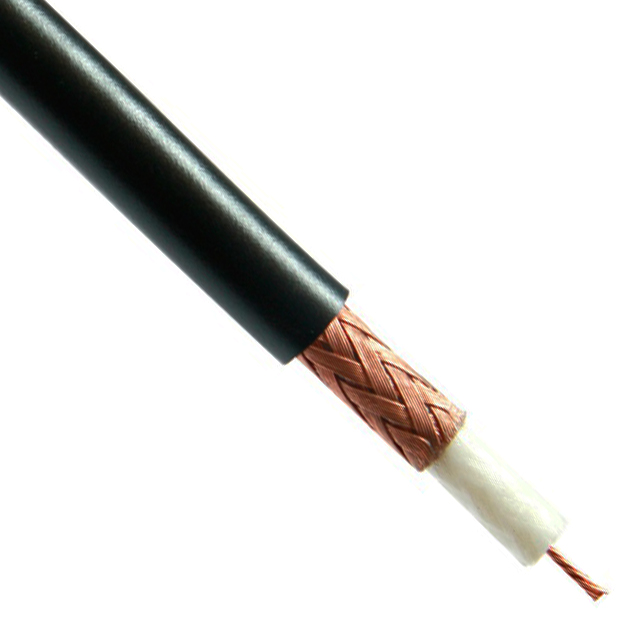

COAXIAL CABLE, TRANSMISSION & COMPUTER, RG174, 26 AWG, 50 OHM, 100 FT, 30.5 M
| Part | Shield Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Shield Type | Cable Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Jacket Color | Jacket (Insulation) Material | Cable Group | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 66 | 1.52 mm | 0.06 in | 90 % | -40 C | 75 ░C | Copper Coated Steel | 7 | 34 AWG | 100 ' | 30.48 m | Braid | Coaxial | 26 AWG | 2.79 mm | 0.11 in | 50 Ohms | Black | Poly-Vinyl Chloride (PVC) | RG-174 | ||
 Belden Inc. | Copper Tinned | 66 | 1.52 mm | 0.06 in | 90 % | -40 C | 75 ░C | Copper Coated Steel | 7 | 34 AWG | Braid | Coaxial | 26 AWG | 2.79 mm | 0.11 in | 50 Ohms | Black | Poly-Vinyl Chloride (PVC) | RG-174 | 152.4 m | 500 ft |
