047266 Series
Manufacturer: Molex
Beta
⌘K

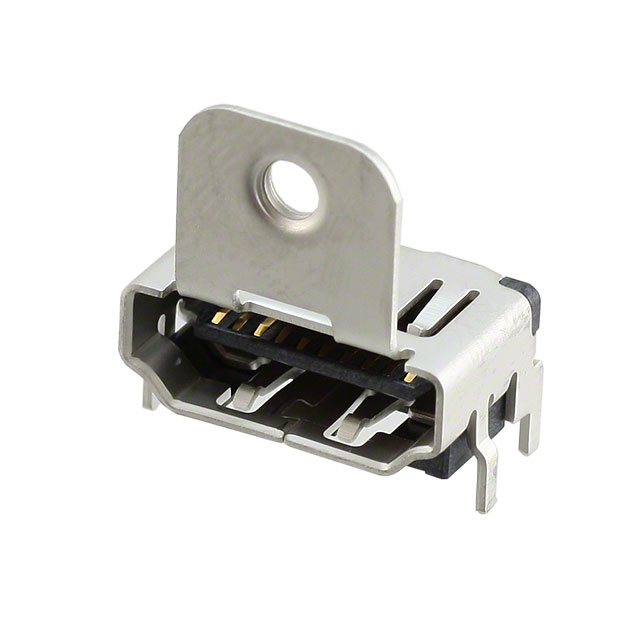

CONN RCPT HDMI 19POS SMD R/A
| Part | Termination | Shell/Shielding Material | Contact Finish | Insulation Color | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Connector Type | Number of Ports | Gender | Mounting Feature | Number of Contacts [custom] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Solder | Copper Alloy | Gold | Black | Surface Mount Right Angle Through Hole | 500 mA | 85 °C | -20 C | Shielded | HDMI | 1 | Receptacle | Horizontal | 19 | 40 V |
 Molex | Solder | Copper Alloy | Gold | Black | Surface Mount Right Angle Through Hole | 500 mA | 85 °C | -20 C | Shielded | HDMI | 1 | Receptacle | Flange Horizontal | 19 | 40 V |
Molex | Solder | Copper Alloy | Gold | Black | Surface Mount Right Angle Through Hole | 500 mA | 85 °C | -20 C | Shielded | HDMI | 1 | Receptacle | Flange Horizontal | 19 | 40 V |
