205827 Series

ConnTAK50 Tang Receptacle, Single Row, 6 Circuits, Key D, Violet

Manufacturer: Molex

Catalog

ConnTAK50 Tang Receptacle, Single Row, 6 Circuits, Key D, Violet

Catalog

ConnTAK50 Tang Receptacle, Single Row, 6 Circuits, Key D, Violet

Part	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Insulation Material	Color	Mounting Type

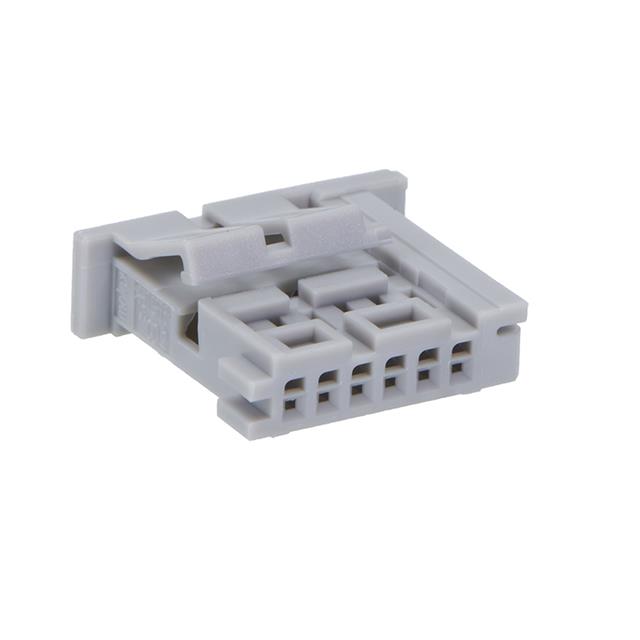

Molex 2058272062	Female Socket	6	-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Natural	Free Hanging (In-Line)

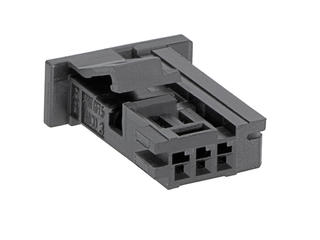

Molex 2058272031	Female Socket		-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Black	Free Hanging (In-Line)
Molex 2058272043	Female Socket	4	-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Free Hanging (In-Line)

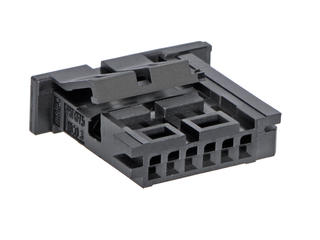

Molex 2058272061	Female Socket	6	-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Black	Free Hanging (In-Line)
Molex 2058272023	Female Socket	2	-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Free Hanging (In-Line)

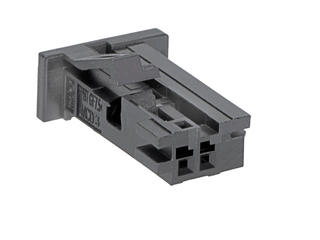

Molex 2058272021	Female Socket	2	-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Black	Free Hanging (In-Line)

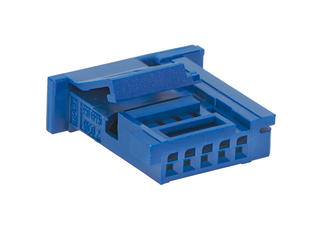

Molex 2058272053	Female Socket		-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Free Hanging (In-Line)

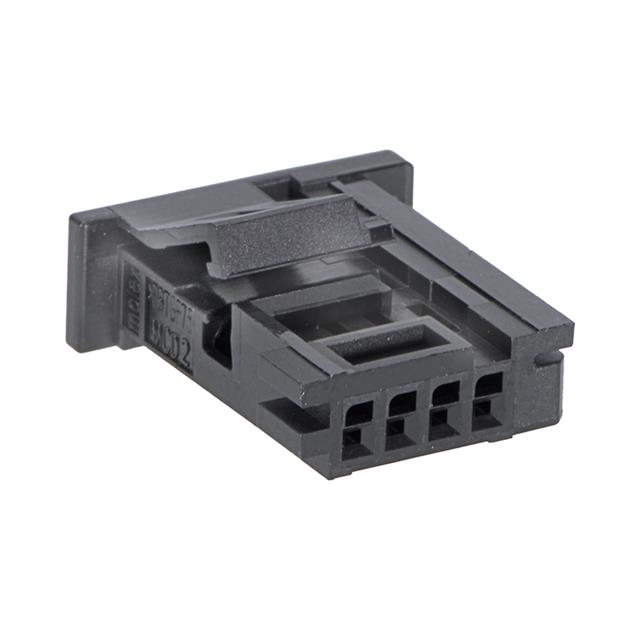

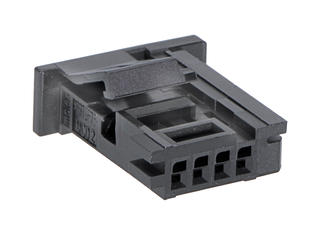

Molex 2058272041	Female Socket	4	-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Black	Free Hanging (In-Line)

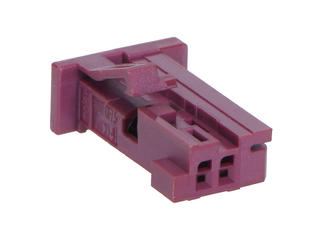

Molex 2058272024	Female Socket	2	-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Violet	Free Hanging (In-Line)

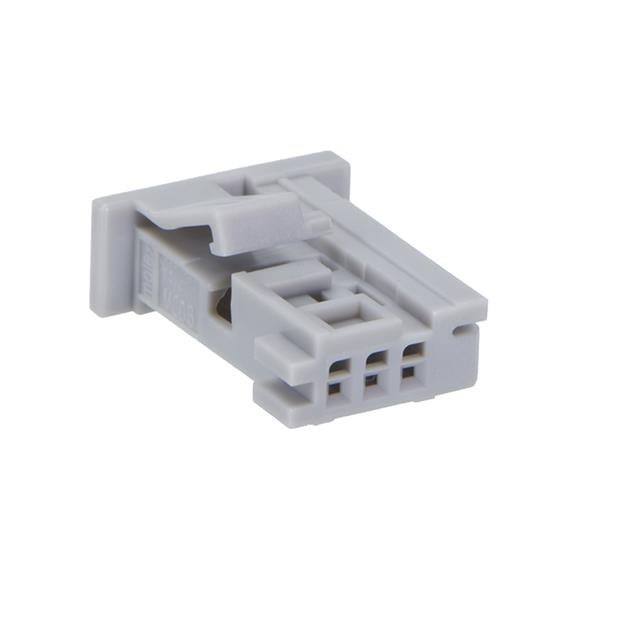

Molex 2058272032	Female Socket		-40 °C	105 ░C	Crimp	Latch Lock	1	0.071 in	1.8 mm	Receptacle	Polybutylene Terephthalate (PBT) Glass Filled	Natural	Free Hanging (In-Line)
